Professional Electrical Porcelain Insulators With CE / SGS Certificate

Professional Electrical Porcelain Insulators With CE / SGS Certificate

    • Professional Electrical Porcelain Insulators With CE / SGS Certificate
  • Professional Electrical Porcelain Insulators With CE / SGS Certificate

    Product Details:

    Place of Origin: CHINA
    Brand Name: HIVOLT
    Certification: CE/SGS
    Model Number: N/A

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: carton
    Supply Ability: 20000 pcs per month
    Contact Now
    Detailed Product Description
    High Light:

    High Voltage Porcelain Insulators

    ,

    High Tension Insulators

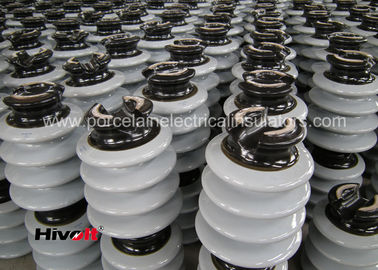

    AS standard pin type insulator brown with radio -free glaze on top for New Zealand market



    Description:



    AS standard pin type insulator technical specifications shown below :

      Technical Specification Unit Value
    1 Total Height mm 260
    2 Max. Shed Diameter mm 198
    3 Creepage Distance mm 470
    4 Cantilever Strength KN 10
    5 Power frequency withstand Voltage
      dry KV 90
      wet KV 60
    6 Puncture Voltage KV 150



    The 20KV AS standard pin type porcelain insulators are designed according to Australian standards.

    ​the product are more popular in medium voltage distributions lines.

    ​the major market for such insulators are Australian and New Zealand market .

    ​Glaze color can be grey or brown .

    ​the insulator is with porcelain thread , so normally when put into use , the worker have to use lead head spindle to assemble those products  .

    the pin type insulator top are with semi-conductive glaze, it is radio-free type.

    ​after insulator design , we will conduct design tests on insulators , the test items shown below:



    1: Low frequency dry flashover test

    2: Low frequency dry flashover test

    3: Critical impulse flashover test ( Positive and Negative )

    4: Radio influence voltage test

    5: Temperature cycle test

    Routine test : flashover test



    Applications:

    the 20 kV pin type insulator mainly used for light pollution area : that means:

    Areas without industries and low density of housed equipped with heating plants.

    Areas with low density of industry or houses but subjected to frequent winds and/or rainfall,

    Agricultural areas .  mountainous areas.

    All those areas shall be at least 10km to 2km from the sea and shall not be exposed to winds directly from the sea .



    Competitive Advantage:

    The HIVOLT AS standard pin insulator has excellent mechanical and electrical character. we have advanced our design to decrease the unit weight ,

    before delivery ,all of the products will be tested qualified,

    ​in this case , we can guarantee our product are in reliable quality .

    we offer 3 years quality guarantee .
