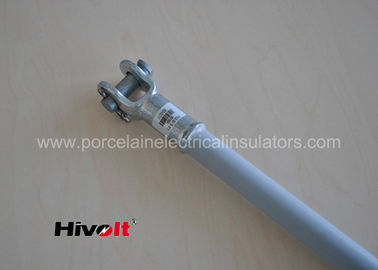

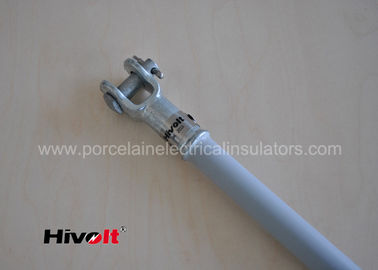

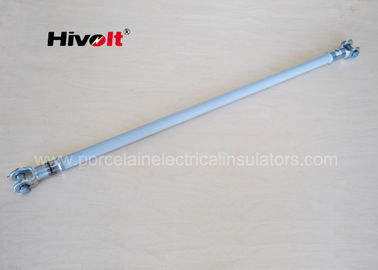

Double Clevis Type Composite Long Rod Insulator Tongue / Clevis Connection Way

Double Clevis Type Composite Long Rod Insulator Tongue / Clevis Connection Way

    • Double Clevis Type Composite Long Rod Insulator Tongue / Clevis Connection Way
    • Double Clevis Type Composite Long Rod Insulator Tongue / Clevis Connection Way
    • Double Clevis Type Composite Long Rod Insulator Tongue / Clevis Connection Way
  • Double Clevis Type Composite Long Rod Insulator Tongue / Clevis Connection Way

    Product Details:

    Place of Origin: CHINA
    Brand Name: HIVOLT
    Certification: CE/SGS
    Model Number: HFS-69/70

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: carton
    Supply Ability: 20000 pcs per month
    Contact Now
    Detailed Product Description
    Sheath Material: Silicone Rubber Core Material: Reinforced Fiber Glass Core
    Metal Fitting Material: Forged Steel Shaping Method: High Pressure Mould Injection
    Application: Transmission Lines Connection Way: Tongue & Clevis

    69kV composite long rod stay insulator color grey IEC61109 ,double clevis type

    Specifications:



    No. Type

    Specified

    mechanical

    load

    KN

    Section Length H, mm

    Minimum

    arcing

    Distance

    mm

    Large

    Shed

    diameter

    Small Shed diameter Minimum Nominal Creepage Distance mm Lightning Impulse Withstand Voltage kV Wet Power Frequency Voltage kV
    1 FXB-69/70 70 920±15 740 / / 740 / 180




    Description:

    The long rod stay insulator have below  characters:

    1 metal fittings are made of forged steel , without any inner defect . the cost are a little bit higher than cast steel , but it can provide much reliable performance .

    the metal fitting zinc coating are Min. 86um , meet  related IEC and ASTM standard .

    2 the fiber glass core covered a layer of silicone rubber shealth . normally such product will use UV proof painting instead of silicone rubber .  of course it can save some cost , but the product electrical performance low down much . and painting is easy removeable .

     so our design will provide better service condition.





    Applications:

    the long rod stay insulator can be used as stay insulators at the distribution line end , and also it can used as spacer for transmission lines.



    Competitive Advantage:

    Advanced design will offer longer working life , and save the utilities ' cost .

    we offer 2 years up to 5 years quality insurance time .

    forged steel metal fittings will never lead to failure due to material defect .

    the fiber glass core material is ECR FRP rod , it is special used for high voltage product instead of normal type.
