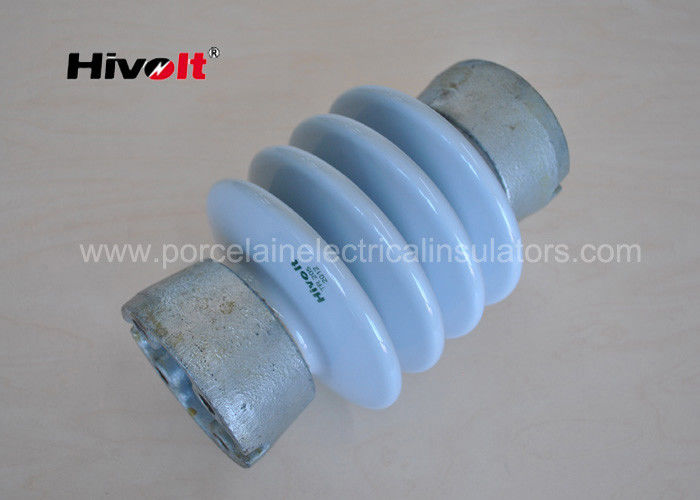

Vertical / Inverted Solid Electrical Insulator OEM / ODM Available TR205

Vertical / Inverted Solid Electrical Insulator OEM / ODM Available TR205

    • Vertical / Inverted Solid Electrical Insulator OEM / ODM Available TR205
  • Vertical / Inverted Solid Electrical Insulator OEM / ODM Available TR205

    Product Details:

    Place of Origin: CHINA
    Brand Name: HIVOLT
    Certification: CE/SGS
    Model Number: TR205

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: wooden pallet
    Supply Ability: 10000 pcs per month
    Contact Now
    Detailed Product Description
    Material: Porcelain C-130 Standard: ANSI C29.9
    Color: Grey Type: Station Post Insulator
    Pitch: UNC Package: Wooden Pallet
    High Light:

    High Voltage Post Insulators

    ,

    Solid Core Post Insulators

    Vertical / Inverted Station Post Insulators OEM / ODM Available TR205



    Description:



    TR205 ANSI standard station post insulator has below characters:

    TR205  station post insulator drawing



    No. Type

    Specified

    Cantilever Strength

    KN

    Tension Strength KN

    Compre-ssion Strength

    KN

    Section Length H, mm

    Shed

    diameter mm

    Minimum Nominal Creepage Distance mm

    Dry Power Frequency

    Flashover Voltage kV

    Critical Impulse

    Flashover Voltage kV

    Wet Power Frequency Flashover Voltage kV
    1 TR205 8.9 38 44.5 254 158 420 85 140 55



    The HIVOLT station post insulators provide the electric power industry with switch and bus insulators ,

    ​which having superior operating characteristics plus high strength for substations.

    we are doing our best to provide max. economy and trouble-free service in a wide variety of voltage and strength ratings. our products can be used from 15KV up to 1000kV substations.





    Applications:

    Suitable for substations and electrical switch up to 46KV etc. The insulator can be used as vertical assembly.



    Competitive Advantage:

    HIVOLT station post insulators are low capacitance insulators, this characteristic enables our product to meet the radio influence voltage requirements required by ANSI C29.9

    The sturdy sheds on porcelain column of insulator keep power arc away from the body and protet it from damage . even in the improbable instance that all sheds are stripped off , the arcover distance of the insulator will not be decreased materially .

    ​we offer good after service , if product have any defect within 3 years after shipment , we will replace them free of charge .

    ​our offer will be very competitive .
