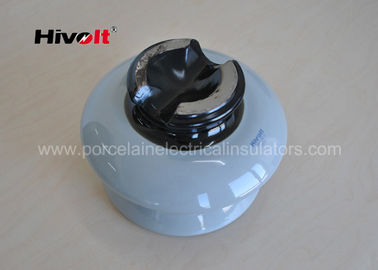

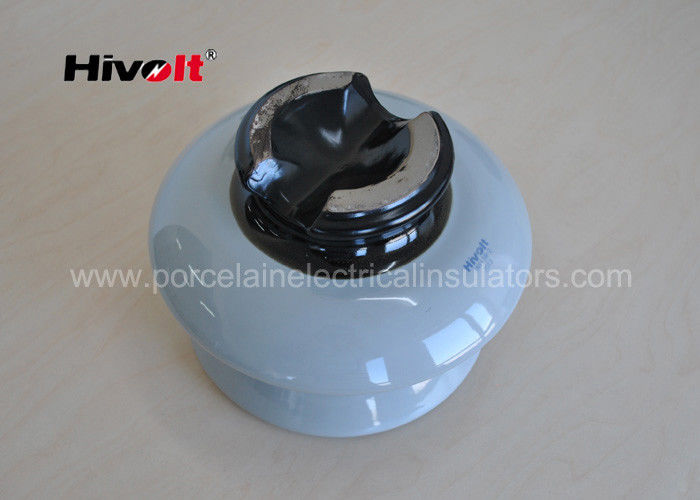

ANSI Standard 56-2 Porcelain Pin Insulator 33kv With Semi Conductive Glaze

ANSI Standard 56-2 Porcelain Pin Insulator 33kv With Semi Conductive Glaze

    • ANSI Standard 56-2 Porcelain Pin Insulator 33kv With Semi Conductive Glaze
    • ANSI Standard 56-2 Porcelain Pin Insulator 33kv With Semi Conductive Glaze
  • ANSI Standard 56-2 Porcelain Pin Insulator 33kv With Semi Conductive Glaze

    Product Details:

    Place of Origin: CHINA
    Brand Name: HIVOLT
    Certification: CE/SGS
    Model Number: 56-2

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Contact Now
    Detailed Product Description

    ANSI standard 56-2 pin type insulator with semi-conductive glaze



    Description:

    ANSI 56-2 pin type insulator  HIVOLT

    ANSI standard porcelain pin type insulator technical character listed below :

      Technical Specification Unit Value
    1 Total Height mm 165
    2 Max. Shed Diameter mm 229
    3 Creepage Distance mm 432
    4 Cantilever Strength KN 13
    5 Low frequency Flashover Voltage
      dry KV 110
      wet KV 70
    6 Critical Impulse Flashover Voltage + KV  175
    7 Low Frequency Puncture Voltage KV 145
    8 RIV Data
      Low Frequency Test Voltage to Ground KV 22
      Max. RIV at 1MHz μV 100



    ANSI 56-2 pin type porcelain insulators are designed according to ANSI C29.6.

    ​the product used for high voltage distributions lines.

    ​insulator can be grey or brown against different specifications.

    ​normally those products will be with zinc thimble thread or porcelain thread , steel head or lead head spindles are all suitable for use with those insulators .

    the pin type insulator top are with semi-conductive glaze, it is radio-free type.

    the semi-conductitive glaze can even electric field , and decrease the electricity affect for telegraph .

    ​we can provide lead head pins for insulator assembly based on customer's requirement.

    below sample test items will be conducted before delivery on each batch of insulators:

    1:  Visual and dimensional test

    2: Porosity test

    3: Cantilever strength test

    4: Pinhole gaging test

    5: Puncture test



    Applications:

    The ANSI 56-2 pin type porcelain insulator is used for high voltage distributions lines.

    normally the pin type insulators will be used together with lead head or steel head spindles .

    Metal or wooden cross arm all applicable .



    Competitive Advantage:

    The HIVOLT pin type insulator ANSI 56-2 are made of high strength porcelain C-120 , which have excellent mechanical and electrical performance. we have advanced our design to decrease the unit weight , which is more suitable for transportation or live line assembly .

    before delivery , we will conduct routine tested and sample test on insulators ,

    ​in this case , we can guarantee our product are in reliable quality .

    we offer 3 years quality guarantee .

    OEM product avaiable for customers.
