Place of Origin: | CHINA |
Brand Name: | HIVOLT |
Certification: | CE/SGS |
Model Number: | N/A |
Minimum Order Quantity: | Negotiable |
---|---|
Price: | Negotiable |
Packaging Details: | wooden pallet |
Supply Ability: | 10000 pcs per month |
Material: | Porcelain C-130 | Standard: | ANSI |
---|---|---|---|
Color: | Grey | Type: | Station Post Insulator |
Pitch: | Metric | Package: | Wooden Pallet |
High Light: | High Voltage Post Insulators,Solid Core Post Insulators |

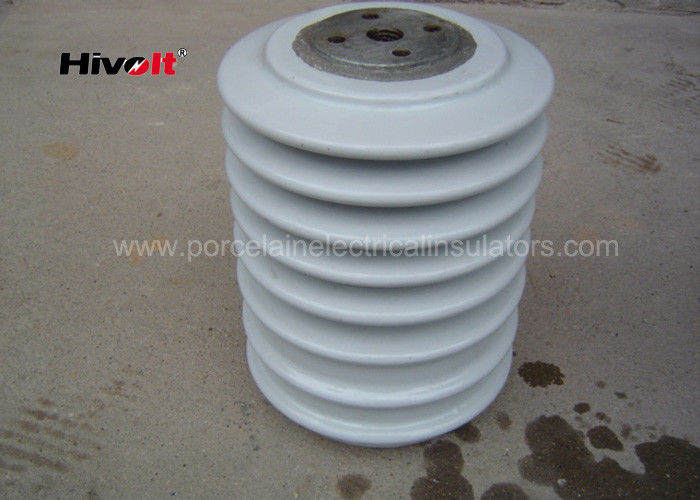

Porcelain Post Insulators With Steel Inserts , Bus Post Insulator Grey Color
Description:
No. | Type |
Specified cantilever strength KN |
Tensile strength KN |
Section Length H, mm |
Shed diameter mm |
Minimum Nominal Creepage Distance mm |
1 | HB350012 | 8 | 20 | 350 | 150 | 520 |
HB340012 porcelain bus support / post insulator are mainly for US market customers.
the insulator mainly used for fuse switches , or bus support insulations .
The product are with cast iron metal inserts on both end .
both end of surface must be parallel very well , and the counterpart thread hole on both end must be in
line . otherwise the support insulator can't be used . in one word , there are very high requirement on
insulator dimensional control .
on the other side , the insulator must provide very high mechanical strength .
because the insulator are with metal inserts on both end , so the porcelain must have higher class
mechanical grade than the same product with metal caps .
so we have to choose C-130 aluminum porcelain as raw material .
Applications:
Suitable for electrical switch 35KV etc. The insulator can be used as insulation parts ,which provide mechanical support . it can also be used as electrical canbinet insulation parts.
Competitive Advantage:
very strictly dimensional control on the insulators , and excellent mechanical strength .
price are more competitive than the same product produced in USA.
we offer 3 years quality guarantee .
we can design similar type of insulators based on customer's requirement
Contact Person: canning
Tel: +8613942017540
