Metric Pitch Porcelain Post Insulators , High Voltage Post Insulators

Metric Pitch Porcelain Post Insulators , High Voltage Post Insulators

  • Metric Pitch Porcelain Post Insulators , High Voltage Post Insulators
  • Metric Pitch Porcelain Post Insulators , High Voltage Post Insulators
Metric Pitch Porcelain Post Insulators , High Voltage Post Insulators
Product Details:
Place of Origin: CHINA
Brand Name: HIVOLT
Certification: CE/SGS
Model Number: H4-125
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: wooden pallet
Supply Ability: 10000 pcs per month
Contact Now
Detailed Product Description
Material: Porcelain C-130 Standard: IEC60273 , IEC60168
Color: Brown Type: Station Post Insulator
Pitch: Metric Package: Wooden Pallet
High Light:

Post Type Insulator

,

High Voltage Post Insulators

Metric Pitch Porcelain Post Insulators , High Voltage Post Insulators



Description:

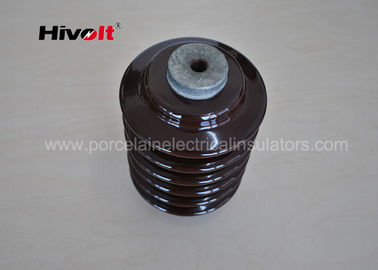

HIVOLT support post insulators H4-125 supplied to EU customers , the product information shown below :

Metric Pitch Porcelain Post Insulators , High Voltage Post Insulators 0



No. Type

Specified

cantilever strength

KN

Section Length H, mm Dry Power Frequency withstand Voltage kV

Large

Shed

diameter

Small Shed diameter Minimum Nominal Creepage Distance mm Lightning Impulse Withstand Voltage kV Wet Power Frequency withstand Voltage kV
1 H4-125 4 210 90 133 / 435 125 50




choose high quality materials :

1 Metal flange the flange use high density ductile iron or malleable iron ,every pieces test qualified after magnetic powder inspection .

Flange surface are hot galvanized , zinc thickness meet related IEC and ASTM standard requirement

2 Porcelain the insulation part use high aluminum porcelain C130 , the porcelain surface covered a layer of hard and shinning glaze , color can be grey , brown or white .

3 Cement excellent Portland cement make the assembled insulator have very good mechanical performance and the quality more reliable .

4 silicone sealant we sue a layer of silicone sealant cover the cement ring surface , just to protect cement have a stable performance for longer life ,

In the meantime , it can prevent cement dust fall down to pollute the electrical instrument .





Applications:

H4-125 support post insulator are used for electrical switches or electrical cabinet as insulation parts ,

​also it have very good mechanical performance.



Competitive Advantage:

We manufacture such type insulators with high aluminum porcelain C-130 ,  the product mechanical strength are in high level . The actual cantilever strength are more than 50% higher than rated value .

we offer 3 years quality guarantee .

The porcelain glaze are smooth and shinning , have a very good self-cleaning performance . it is easy for maintenance .

OEM design available upon customer’s requirement or special technical specifications.
