Silicone Rubber 10kV-550kV High Voltage Lightning Impulse Withstand Voltage 110kV-1880KV for Power Transmission

Product Description:

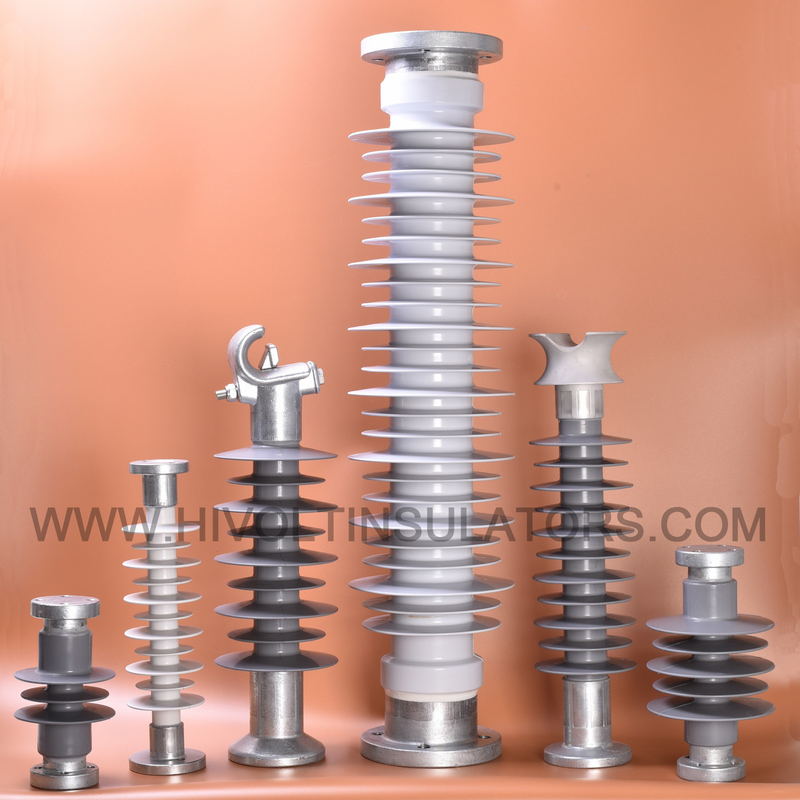

Our Station Post Insulators are designed to withstand high voltage and harsh environmental conditions. They have a Power Frequency Puncture Voltage rating of 100kV~1000KV, which ensures optimal safety and performance. These insulators have a Metric pitch and are available in Gray color.

The Station Post Insulators feature a steel flange that provides additional strength and durability. The flange is designed to withstand mechanical stresses and ensure stable performance over the life of the insulator. The insulators also come with an ECR rod that adds to their strength and reliability.

Another important feature of these Station Post Insulators is their Creepage Distance. The insulators have a Creepage Distance of 450mm~20000mm, which ensures optimal insulation and protection against electrical discharge. They also have a Minimum Creepage Distance of 400mm~15000mm, which is the smallest distance that can be used to maintain safe insulation.

Overall, our Station Post Insulators are a reliable and durable solution for high voltage electrical systems. They are designed to withstand harsh environmental conditions and provide optimal performance and safety. Order yours today and experience the benefits of our high-quality insulators.

Features:

• Product Name: Station Post Insulators
• Lightning Impulse Withstand Voltage: 110kV~1880KV
• Power Frequency Puncture Voltage: 100kV~1000KV
• Color: Gray
• Cantilever Strength: 5kN~20kN
• Creepage Distance: 450mm~20000mm
• Material: ECR rod and silicone rubber
• Designed for switchgear use

Technical Parameters:

Our Station Post Insulators are perfect for switchgear and high pollution level environments, and we offer fast delivery times.

Applications:

The FZSW Station Post Insulators are designed with a metric pitch, making them easy to install and compatible with a wide range of equipment. They also have a strong cantilever strength, ranging from 5kN to 20kN, which ensures they can support heavy loads without breaking.

These insulators are particularly well-suited for use in areas with high pollution levels. The silicone rubber material is resistant to contamination and can be easily cleaned, ensuring optimal performance over time. Additionally, the FZSW insulators can be fitted with an ECR rod, which further enhances their ability to resist pollution and maintain reliable performance under harsh conditions.

Whether you need to replace existing insulators or are installing new equipment, the FZSW Station Post Insulators offer fast delivery times and come packaged on wooden pallets for easy transport. Choose from a range of models to find the one that best meets your technical requirements and budget.

Customization:

Customize your HIVOLT FZSW Station Post Type Insulators with our product customization services. Made in China with high-quality materials, these insulators come with a steel flange and are made with HTV rubber, making them perfect for switchgear.

Choose from cantilever strengths ranging from 5kN to 20kN and weights ranging from 5kg to 200KGS. The minimum creepage distance can be customized to fit your specific needs, with options ranging from 400mm to 15000mm. Each insulator is packaged on a sturdy wooden pallet to ensure safe delivery.
