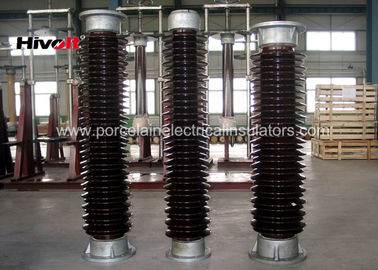

550kV Station Post Insulators With IEC60168 / IEC60273 Standard

550kV Station Post Insulators With IEC60168 / IEC60273 Standard

    • 550kV Station Post Insulators With IEC60168 / IEC60273 Standard
  • 550kV Station Post Insulators With IEC60168 / IEC60273 Standard

    Product Details:

    Place of Origin: CHINA
    Brand Name: HIVOLT
    Certification: CE/SGS
    Model Number: C12.5-2250

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: wooden pallet
    Supply Ability: 10000 pcs per month
    Contact Now
    Detailed Product Description
    Material: Porcelain C-130 Standard: IEC60168 IEC60273
    Color: Brown Type: Station Post Insulator
    Pitch: Metric Package: Wooden Pallet
    High Light:

    High Voltage Post Insulators

    ,

    Solid Core Post Insulators

    550kV Station Post Insulators With IEC60168 / IEC60273 Standard



    Description:



    HIVOLT station post insulators choose high quality materials :

    1 Metal flange the flange use high density ductile iron or malleable iron ,every pieces test qualified after magnetic powder inspection .

    Flange surface are hot galvanized , zinc thickness meet related IEC and ASTM standard requirement

    2 Porcelain the insulation part use high aluminum porcelain C130 , the porcelain surface covered a layer of hard and shinning glaze , color can be grey , brown or white .

    3 Cement excellent Portland cement make the assembled insulator have very good mechanical performance and the quality more reliable .

    4 silicone sealant we sue a layer of silicone sealant cover the cement ring surface , just to protect cement have a stable performance for longer life ,

    In the meantime , it can prevent cement dust fall down to pollute the electrical instrument .

    one more thing , we can also paint HRTV on the insulator body surface , if customer has such requirement .

    the HRTV coating has excellent insulation performance , it can be used in extra heavy pollution area.



    Applications:

    Suitable for substations and electrical switch up to 1000KV etc. The insulator can be used as vertical or inverted .



    Competitive Advantage:

    High aluminum porcelain C-130 , the insulator core diameter are smaller ,while the mechanical strength are in high level . compare with other supplier’s product , we decrease much the unit weight . it is more suitable for insulator assembly in lines , and make easier maintenance. The actual cantilever strength are more than 50% higher than rated value .

    we offer 3 years up to 5 years quality guarantee .

    The porcelain glaze are smooth and shinning , have a very good self-cleaning performance . it is easy for maintenance .

    OEM design available upon customer’s requirement or special technical specifications.
