|No.2804, 75 Huili Street , Ganjingzi District, Dalian China|
|Place of Origin:||CHINA|
|Minimum Order Quantity:||Negotiable|
|Packaging Details:||wooden box|
|Type:||Hollow Core Insulator||Insulation Material:||Porcelain|
|Color:||White ,brown Or Grey||Standard:||IEC62155|
|OEM:||Available||Special Performance:||Working Temperature 0℃~400℃|
Line Post Insulators,
Composite Hollow Insulator

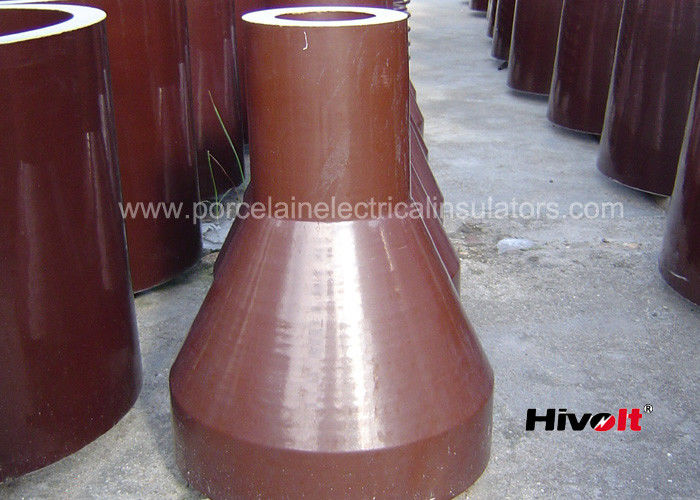

White / Brown / Grey Color Hollow Core Insulators For Dust Precipitators
1) the bushing use high aluminum porcelain C130 , which guarantee the bushing have perfect mechanical character .
2) This kind of hollow insulator specially used for dust percipitators , because of specially working temperature requirement , so the insulator must withstand Min.400℃ . normal porcelain can't reach this level . When we make insulator component design , the Al2O3 percentage must be above 60% .
so it leads to firing temperature must be more than 1300℃ ,the related production cost will increase much also .
3) the applicable standard is IEC standard .
specially used for dust percipitators as a mechanical support parts and insulation parts also .
we tested each unit of hollow insulators to be sure all bushings are qualified . the tests including :
1) routine visual inspection , routine water pressure test and electrical flashover test
2) sample test , for example dimensional check , porosity test etc. mechanical bending load test , water burst test etc. on every lot of bushings.
in this case the user can use our product safely .
we offer 2 years quality guarantee after shipment .
The porcelain glaze are smooth and shinning , it is easy for maintenance .
Contact Person: canning
