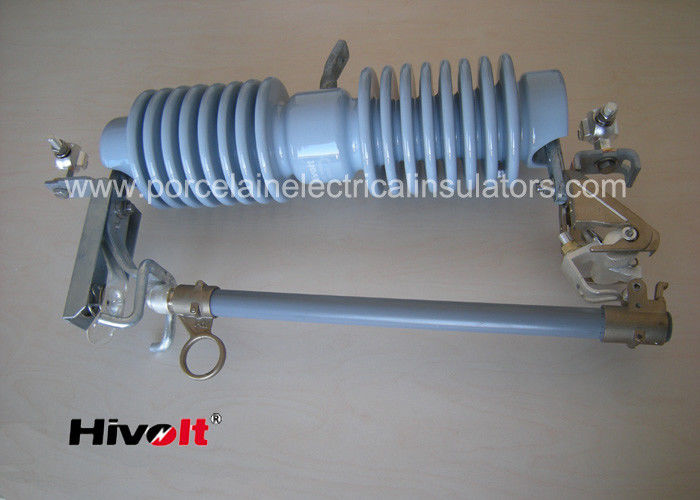

Professional Certificated Dropout Fuse Cutout With Normal Rain Cover 34.5KV

Professional Certificated Dropout Fuse Cutout With Normal Rain Cover 34.5KV

    • Professional Certificated Dropout Fuse Cutout With Normal Rain Cover 34.5KV
  • Professional Certificated Dropout Fuse Cutout With Normal Rain Cover 34.5KV

    Product Details:

    Place of Origin: CHINA
    Brand Name: HIVOLT
    Certification: CE/SGS
    Model Number: HFC-35A

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: carton
    Supply Ability: 9000 pcs per month
    Contact Now
    Detailed Product Description
    Insulation Material: High Strength Porcelain Color: Grey
    Bracket: NEMA Bracket Type A Or Type B Type: Conventional
    Fuse Link: Available Current: 100A , 200A Or 300A
    High Light:

    Cut Out Fuse Link

    ,

    High Voltage Fuse Cutout

    Description:

    product name : Professional Certificated Dropout Fuse Cutout With Normal Rain Cover 34.5KV

    Rated Voltage: 34.5 kV

    Rated Current : 100A

    Breaking Capacity : 8kA

    (Symmetrical current interruption)

    Power Frequency withstand voltage (dry) : 70kV

    Impulse Voltage : 170 kV

    Leakage distance : 680m

    Connector type : paralell groove connector


    1)  the dropout fuse cutout insulation body are high aluminum porcelain C-130 ,

    2)  a layer of shinning glaze covered on the body , color can be grey or brown .

    3)  the porcelain have excellent mechanical & electrical performance.

    4)  Conductive parts use material copper, bronze or brass , it depends on customer’s requirement.

    4)  The fuse cutout are suitable for 34.5KV lines .



    Applications:

    Used for distribution lines , suitable for wooden or steel cross arm



    Competitive Advantage:

    2 years quality insurance time are satisifed by most of customers.

    to provide excellent product performance , we routine tested all porcelain body by 50% cantilever strength . for example 34.5kV dropout fuse cutout porcelain insulator Min. cantilever 15kN , we routine test 7.5kV withstand 10 seconds .

    in this way , we can sure all product are qualified .
