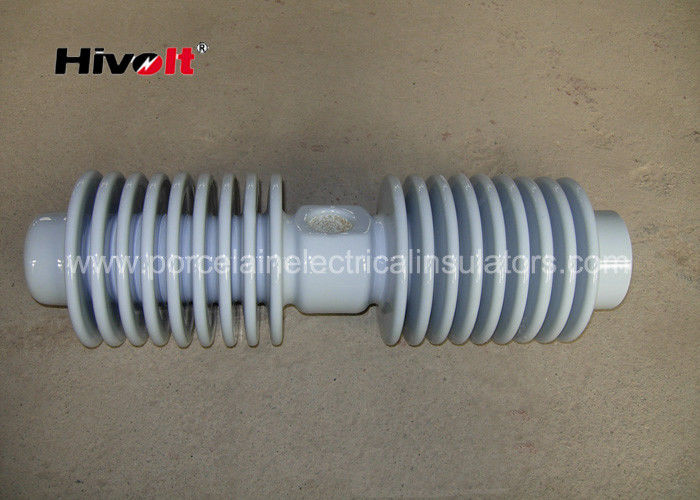

High Strength Porcelain Cut Out Fuse , 36kv Dropout Fuse Different Types HFC-36P

High Strength Porcelain Cut Out Fuse , 36kv Dropout Fuse Different Types HFC-36P

High Strength Porcelain Cut Out Fuse , 36kv Dropout Fuse Different Types HFC-36P

Product Details:

Place of Origin: CHINA
Brand Name: HIVOLT
Certification: CE/SGS
Model Number: HFC-36P

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: carton
Supply Ability: 20000 pcs per month
Contact Now
Detailed Product Description
Insulation Material: High Strength Porcelain Color: Grey
Cantilever Strength: More Than 16kN Package: Carton In Pallet
OEM: Available Customer Design: Available

ANSI standard 36KV 170BIL porcelain dropout fuse cutout insulators grey



Description:

a) Type : ANSI standard 36KV 170BIL porcelain dropout fuse cutout insulators grey

b) insulator length : 467mm

c) Min. creepage distance : 660mm

d) Lightning impulse withstand voltage : 170 kV

e) Cantilever strength : 15 kN



we can supply both assembled dropout fuse cutout with related hardwares and fuse cutout insulators also .

we have many customers which come from fuse cutout factories all over the world .

up to now , there are around 5 million pcs cutout insulators from our factory working in all over the world .

the insulator including :15KV  , 27kV ,36kV class level  .

we also can do OEM production for different customers.

The porcelain raw material we are using is high aluminum porcelain material  C-130 , it has brilliant mechanical and electrical performance .

thanking for the good quality and competitive price , we have good reputation in the market  USA and South American countries .

free charge of samples available for your testing and evaluation .

this type of insulators cantilever strength are more than 15kN.



Applications:

assembled fuse cutout insulator can work for distribution lines below 36kV.



Competitive Advantage:

Insulator quality guarantee period can be up to 5 years .

​all insulator dimensions torcelance are well controled to be sure there are no any problems for final assembly.

All dropout fuse cutout insulators are routine tested , and further sample tested .
our confidence comes from every strictly quality control procedure during production .
