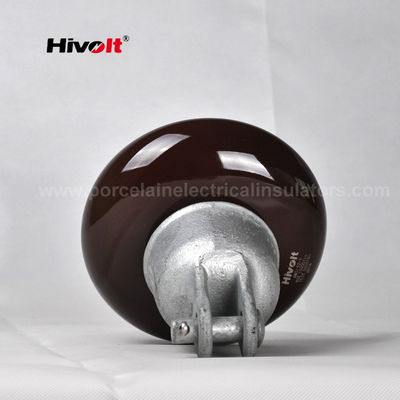

ANSI 52-1 Porcelain Suspension Insulator Anti Fog OEM / ODM Available

ANSI 52-1 Porcelain Suspension Insulator Anti Fog OEM / ODM Available

    • ANSI 52-1 Porcelain Suspension Insulator Anti Fog OEM / ODM Available
    • ANSI 52-1 Porcelain Suspension Insulator Anti Fog OEM / ODM Available
    • ANSI 52-1 Porcelain Suspension Insulator Anti Fog OEM / ODM Available
    • ANSI 52-1 Porcelain Suspension Insulator Anti Fog OEM / ODM Available
    • ANSI 52-1 Porcelain Suspension Insulator Anti Fog OEM / ODM Available
    • ANSI 52-1 Porcelain Suspension Insulator Anti Fog OEM / ODM Available
  • ANSI 52-1 Porcelain Suspension Insulator Anti Fog OEM / ODM Available

    Product Details:

    Place of Origin: CHINA
    Brand Name: HIVOLT
    Certification: CE/SGS
    Model Number: ANSI 52-1

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: Carton or wooden pallet
    Contact Now
    Detailed Product Description
    Material: Porcelain C120 Color: Grey Or Brown
    Standard: ANSI C29.2 Connection Way: Eye & Clevis
    Package: Carton Or Wooden Pallets OEM Product: Available

    ANSI 52-1 Porcelain Suspension Insulator / High Voltage Insulators With OEM Available



    Description:



    Technical Specification of ANSI 52-1 porcelain suspension insulator for distribution lines


    suspension insulator ANSI 52-1
      Technical Specification Unit Value
    1 Spacing mm 140
    2 Shed Diameter mm 165
    3 Creepage Distance mm 178
    4 Combined M&E Strength KN 44
    5 Impact Strength N.m 5
    6 Low Power Frequency Flashover Voltage
      dry KV 60
      wet KV 30
    7 Critical Impulse Flashover Voltage
      Positive KV 100
      Negative KV 100
    8 Puncture Voltage KV 80
    9 RIV test Voltage to the Ground KV 7.5
      Max RIV at 1 MHz μV 50





    ​HIVOLT suspension insulators choose high quality materials for parts :



    1 Cap & Pin

    the cap use high density ductile iron ,every pieces tested qualified after magnetic powder inspection . the pins are made of forged steel .Both cap and pin are hot galvanized , zinc thickness meet related IEC and ASTM A153 standard requirement



    2 Porcelain body

     the ceramic insulation part use high aluminum porcelain C120 . the porcelain surface covered a layer of shinning glaze , color can be grey , brown or white or as per customer's specifications.



    3 locking device

    material stainless steel which guarantee insulator string connection very safety .



    4 Cement

    excellent Portland cement make the assembled insulator have very good mechanical performance and the quality more reliable .



    Applications:

    Suitable for distribution lines 11kV ,33 kV etc. .



    competitive Advantage:

    High reliable mechanical & electrical performance , we offer 1 years up to 3 years quality guarantee . high quality deserve your trust !

    The porcelain has beautiful glazing , it is shinning and easy for maintenance .

    we offer very fast delivery time

    OEM product are available .
