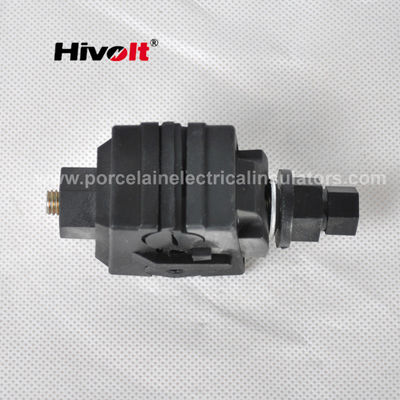

Name: Cable Clamp Transmission Line Hardware Wire Piercing Connector High Performance
Brand: Dalian Hivolt Power System Co.,Ltd.
SKU: N/A
Price: 10.00 USD
Availability: InStock

Home Products Transmission Line Hardware

Cable Clamp Transmission Line Hardware Wire Piercing Connector High Performance

Product Details:

Place of Origin:	CHINA
Brand Name:	HIVOLT
Certification:	CE/SGS
Model Number:	N/A

Payment & Shipping Terms:

Minimum Order Quantity:	500
Packaging Details:	wooden pallet
Supply Ability:	50,000pcs per month

Contact Now

Detailed Product Description

Material:

Steel With Plastic Surface

Type:

N/A

Surface Treatment:

Plastic

Mechanical Strength:

N/A

Highlight:

hot line clamp

transmission line connector

cable clamp with insulation surface, easy use and high reliable performance Insulation Piercing Connectors

Description:

Technical specification

Dimensions
Main Cable Line:	16-95mm²
Branch Cable Line:	4-50mm²
Norminal Current:	132A
Piercing Depth:	2.5-3.5mm
Weight:	132g
Features
Bolt:	M8*70
Mechnical
Tightening Torque:	20Nm

Cable Size:16-95mm² to 4-50mm²
Description:The KW2-95 is used for all connections of insulated aluminum and copper main and branch conductors up to 1KV. The Design enables hot line installation.Equipped with shear head screw

Applications:

Suitable for distribution lines 1kV cables .

competitive Advantage:

High reliable mechanical & electrical performance , we offer 1 years up to 3 years quality guarantee . high quality deserve your trust !

Tag:

Contact Person: Canning

Tel: +86 411 84950806
