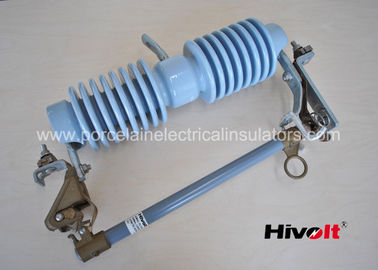

ANSI Standard Cut Out Fuse Link With Arc Shortning Rod 100A / 200A / 300A

ANSI Standard Cut Out Fuse Link With Arc Shortning Rod 100A / 200A / 300A

  • ANSI Standard Cut Out Fuse Link With Arc Shortning Rod 100A / 200A / 300A
ANSI Standard Cut Out Fuse Link With Arc Shortning Rod 100A / 200A / 300A
Product Details:
Place of Origin: CHINA
Brand Name: HIVOLT
Certification: CE/SGS
Model Number: HFC-35
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: carton
Supply Ability: 9000 pcs per month
Contact Now
Detailed Product Description
Insulation Material: High Strength Porcelain Color: Grey
Bracket: NEMA Bracket Type A Or Type B Type: Conventional
Fuse Link: Available Current: 100A , 200A Or 300A
High Light:

Cut Out Fuse Link

,

High Voltage Fuse Cutout

Description:

product name : ANSI Standard Cut Out Fuse Link With Arc Shortning Rod 100A / 200A / 300A



1) the dropout fuse cutout insulator are high strength ceramic type C-130 ,

2) porcelain color is grey or brown or custsomer's specification .

3) the porcelain have excellent mechanical & electrical performance.

4) Conductive parts can be copper, bronze or brass , it may change according to user’s specifications.

4) The product are suitable for 34.5KV lines .



Applications:

HIVOLT dropout fuse cutout are mainly used for distribution line protection, proper voltage level up to 35KV .



Competitive Advantage:

we offer at least 2 years of quality guarantee period , up to 3 days based on different requirement.

to provide reliable dropout fuse cutout  , we routine tested all porcelain body with 50% rated cantilever strength . for example 34.5kV dropout fuse cutout porcelain insulator Min. cantilever 15kN , we routine test 7.5kV withstand 10 seconds . if no crack or failure, the product will be proceed with assembly .

in this way , we can sure all product are qualified .
