IEC Standard Pin Type Insulators With Tie Top Silicone Rubber Shed Material

Product Details:

Place of Origin:	CHINA
Brand Name:	HIVOLT
Certification:	CE/SGS
Model Number:	HP-15

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	wooden pallet
Supply Ability:	20000 pcs per month

Contact Now

Detailed Product Description

Shed Materila:	Silicone Rubber	Core Material:	Fiber Glass
Voltage Level:	15kV	Top Fitting Material:	Aluminum Alloy
Bottom Fitting Material:	Forged Steel	Package:	Carton
High Light:	Shackle Type Insulator , High Tension Insulators

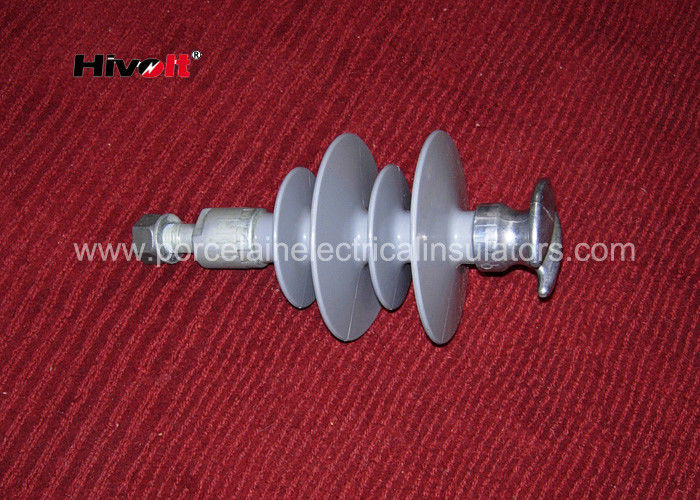

IEC standard silicone rubber pin insulator color grey for distribution systems with tie top

Description:

IEC standard 15KV vertical composite pin type insulator , grey color for distribution lines.

Product technical performance :

	Technical Specification	Unit	Value
1	Total length	mm	320
2	Max. Shed Diameter	mm	120
3	Creepage Distance	mm	420
4	Cantilever Strength	KN	10
5	Power frequency Withstand Voltage
	dry	KV	85
	wet	KV	50
6	Lightning Impulse withstand Voltage	KV	110

We developed silicone rubber pin type insulators which equivalent to porcelain units .

the silicone rubber types have good proformance , it save much unit weight , and easy for handling .

normally the insulators can work more than 20 years on line .

the insulator has tipe top or clamp top , which suitable for accept bare conductors .

the insulator pin can be long or short type , which suitable for wooden crossarm or steel crossarm .

the pin insulator core material is fiberglass rod which produced from the highest quality materials. Strands are aligned for maximum cantilever strength. The rod is more than 50 percent glass fibers in cross section.

End fittings are cast steel.the fittings surface are hot dip galvanized , or aluminum alloy .

which provide same mechanical performance.

the silicone rubber are HTV type ,which come from Dow Corning .

Interface between silicone rubber and fiberglass rod are well treated with sealant .

This feature prevents intrusion of moisture and contaminating elements.

Applications:

The 15 kV silicone rubber pin type insulators are used on distrbution lines . These insulators are commonly installed vertically on metal cross arm to support the conductor .

Competitive Advantage:

. The pin type insulator has excellent mechanical and electrical performance.
• Eliminate or Reduce Maintenance and is compatible with existing plant
• Safety (light weight for handling and installation)
• Long service Life (consistent performance over its service life)
