Specially Designed Pin Type Insulators For Distribution Systems HIVOLT

Specially Designed Pin Type Insulators For Distribution Systems HIVOLT

  • Specially Designed Pin Type Insulators For Distribution Systems HIVOLT
  • Specially Designed Pin Type Insulators For Distribution Systems HIVOLT
Specially Designed Pin Type Insulators For Distribution Systems HIVOLT
Product Details:
Place of Origin: CHINA
Brand Name: HIVOLT
Certification: CE/SGS
Model Number: ANSI 55-3
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: wooden pallet
Supply Ability: 20000 pcs per month
Contact Now
Detailed Product Description
High Light:

Shackle Type Insulator

,

High Tension Insulators

ANSI standard 55-3 pin type insulator color grey for distribution systems



Description:

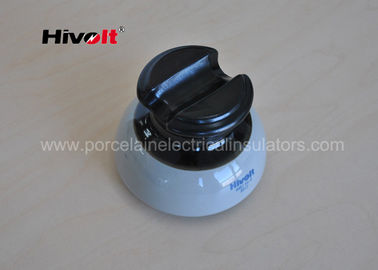

ANSI 55-3 pin type insulator

ANSI standard porcelain pin type insulator technical character shown below :

  Technical Specification Unit Value
1 Total Height mm 95.2
2 Max. Shed Diameter mm 120.6
3 Creepage Distance mm 178
4 Cantilever Strength KN 11
5 Low frequency Flashover Voltage
  dry KV 55
  wet KV 30
6 Critical Impulse Flashover Voltage   + KV  90
7 Low Frequency Puncture Voltage KV 90
8 RIV Data
  Low Frequency Test Voltage to Ground KV 10
  Max. RIV at 1MHz μV 50



ANSI 55-3 pin type porcelain insulators are specially designed for American market .

​the product used for low voltage or medium voltage distributions lines.

​normally those products will be with porcelain thread , lead head pins are recommended for use with those insulators . the cantilever strength test shall also be conducted with lead head pins .

because lead is soft , it will not hurt the porcelain thread .

the pin type insulator top can be normal type (with normal porcelain glaze ) or radio free type (with semi-conductive glaze) .

the insulator thread hole also covered with semi-conductive glaze .

​we can provide lead head pins for insulator assembly , which can be suitable for wooden crossarm or steel cross arm .



Applications:

The 55-3 pin type porcelain insulator is used for low voltage or medium voltage distributions lines. These insulators are commonly installed vertically on metal or wooden structures based to support the
conductor .



Competitive Advantage:

The HIVOLT pin type insulator are made of high strength aluminum porcelain C-130 .

All units product are routine tested one by one , and sample tested by batches ,

​so we guarantee all products are in high quality level .

we offer 3 years quality guarantee .

the product price are very competitive . if you have interests , please feel free contacting with us !
