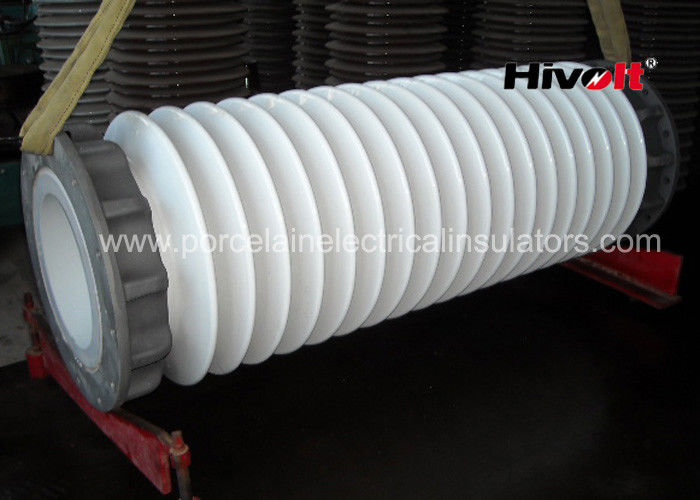

110KV White Color Hollow Core Insulators Anti Fog Without Conductor

110KV White Color Hollow Core Insulators Anti Fog Without Conductor

  • 110KV White Color Hollow Core Insulators Anti Fog Without Conductor
110KV White Color Hollow Core Insulators Anti Fog Without Conductor
Product Details:
Place of Origin: CHINA
Brand Name: HIVOLT
Certification: CE/SGS
Model Number: KB1102A
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: wooden box
Supply Ability: 10000
Contact Now
Detailed Product Description
Type: Hollow Core Insulator Insulation Material: Porcelain
Color: White ,brown Or Grey Standard: IEC62155
Metal Flange: Available Flange Material: Aluminum Alloy
High Light:

Line Post Insulators

,

Solid Core Insulator

110KV White Color Hollow Core Insulators Anti Fog Without Conductor



Specifications:

HIVOLT 132kV hollow core insulator in white color is specially designed for Russian market.

it is used for high voltage capacitors ,

Unit product height is 1200mm in 1 single piece without any joint ,

Min. leakage distance is 4150mm

Min. bending load  : 24kN

Min. routine water pressure : 0.4Mpa withstand 5 minutes

Routine bending load : 16.5kN withstand 10 s

​Insulator working temperature range : -60℃~+50℃

The flange material on both end of insulator is aluminum alloy , before cementing ,bituminous painting shold be applied on inner flange surface , porcelain sand band area .

Cement material code No. 525#

Applicable standard : IEC62155.



Applications:

HIVOLT 132KV hollow insulator in white color mainly supplying to Russian market ,

​the product used as insulation body of high voltage capacitors .



Competitive Advantage:

We offer up to 5 years insulator quality guarantee , if the unit defect come from production or insulator inner defect , we will replace the un-qualified units free of charge .

Our price are very competitive than Russian local manufaturers .

​Delivery time are very flexible and fast based on customer's requirements.
