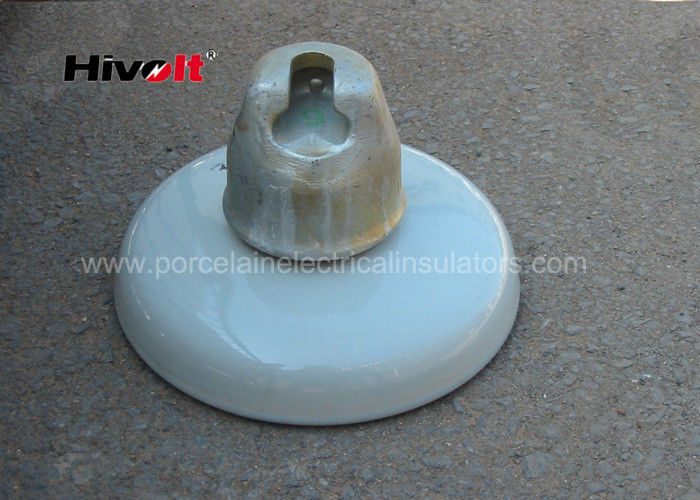

ANSI 52-8 Disc Suspension Insulator For Distribution Power Lines 110KV

ANSI 52-8 Disc Suspension Insulator For Distribution Power Lines 110KV

  • ANSI 52-8 Disc Suspension Insulator For Distribution Power Lines 110KV
  • ANSI 52-8 Disc Suspension Insulator For Distribution Power Lines 110KV
ANSI 52-8 Disc Suspension Insulator For Distribution Power Lines 110KV
Product Details:
Place of Origin: CHINA
Brand Name: HIVOLT
Certification: CS/IEC
Model Number: ANSI 52-8
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden pallets or wooden crates
Supply Ability: 50,000pcs per month
Contact Now
Detailed Product Description
Material: Porcelain C120 Glaze Color: Grey Or Brown
Connection Way: Ball & Socket Standard: ANSI C29.2
Package: Woode Pallet Or Crate Line Voltage: 110kV ,220KV,330KV,500KV
High Light:

Cap And Pin Insulator

,

Suspension Type Insulator

ANSI 52-8 Disc Suspension Insulator For Distribution Power Lines 110KV



Description:

ANSI 52-8 grey color Porcelain Insulators , Disc Suspension Insulator For Distribution Power Lines normally above 110KV

52-3

Technical Data Sheet

  Technical Specification Unit Value
1 Spacing mm 146
2 Shed Diameter mm 280
3 Creepage Distance mm 320
4 Combined M&E Strength KN 160
5 Impact Strength N.m 10
6 Low Power Frequency Flashover Voltage
  dry KV 80
  wet KV 50
7 Critical Impulse Flashover Voltage
  Positive KV 125
  Negative KV 130
8 Puncture Voltage KV 110
9 RIV test Voltage to the Ground KV 10
  Max RIV at 1 MHz μV 50



we sell huge quantity of ANSI 52-8  suspension insulators to North Americans and South American countries due to good quality and very competetive price .

now HIVOLT has become to a very famous brand  in those countries .



we use porcelain material C-130 producing this type of product , so the insulator will have very good mechanical charactor . after production , we will test each insulator with below routine test :


1  tension load test with applied mechanical strength 80kN withstand for 1 minute

2  flashover test , to sort the unqualified product out .

after routine test , we will also do sample test on each batch to be sure the related batch of product are qualified .  test items including : dimensions check , thermal shock test ,zinc thickness test on metal fittings , combined electrical & mechanical test , puncture test etc.






Applications:

ANSI 52-8 are very suitable for tension string in electrical lines from 110kV up to 500kV electrical lines .





Competitive Advantage:

ANSI 52-8 insulators are very reliable .

the failure rate is lower than 1.2 per 100000 .

product quality insurance period is Min. 1 years after BL date  .

we use special component of glaze , so the porcelain surface have very good self-cleaning character . it makes maintenance more convenient .

We can produce the insulator with different colors  :  grey , brown , white or green .
