|Material:||Porcelain C120||Glaze Color:||Grey Or Brown|
|Connection Way:||Ball & Socket||Standard:||ANSI C29.2|
|Package:||Woode Pallet Or Crate||Line Voltage:||11kV,33kV,66kV,110kV|
Disc Type Insulator,
Cap And Pin Insulator

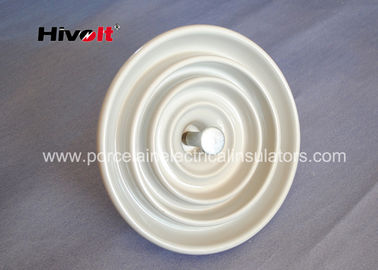

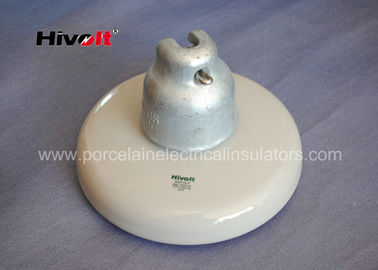

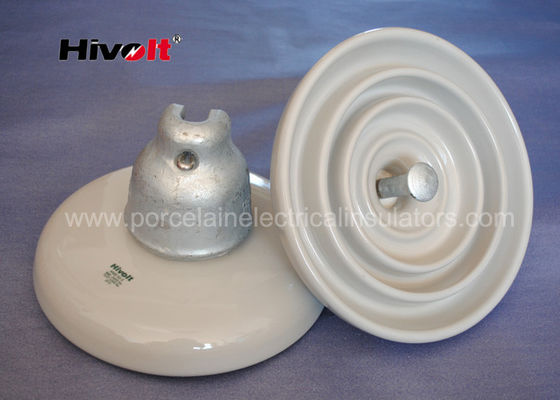

ANSI 52-3 White Porcelain Insulators , Disc Suspension Insulator For Distribution Power Lines
Technical Specifications for ANSI 52-3 disc insulator porcelain grey for US market
|4||Combined M&E Strength||KN||70|
|6||Low Power Frequency Flashover Voltage|
|7||Critical Impulse Flashover Voltage|
|9||RIV test Voltage to the Ground||KV||10|
|Max RIV at 1 MHz||μV||50|
ANSI 52-3 suspension insulators mainly used in the market of USA , Canada , and many South American countries .HIVOLT product export to many of those countries , and have very good reputation just because we use high quality materials for insulators :
1 the insulator cap use high density ductile iron ,we test each piece of caps with magnetic powder testing method . the insulator pins are made of forged steel .the material can guarantee the inside of pin without any defects such as air , hole , crack etc.
Both cap and pin are hot galvanized , zinc thickness meet ASTM 135 standard .
2 we produce porcelain with high aluminum porcelain C120 . the porcelain surface covered a layer of hard glaze , color can be grey , brown or white or as per customer's specifications.
3 the material of R type locking pin is stainless steel which guarantee insulator string connection very safety .
4 we use excellent Portland cement to assemble insulation body with related cap and pins . even after years of servicing , the cement still keep good performance.
insulator 52-3 are very suitable for tension string or suspension string in electrical lines from 11kV up to 132kV in some substations , you can also find it .
HIVOLT 52-3 insulators have a very reliable electrical & machincal character .
the failure rate is lower than 1 per 100000 .
we offer 2years up to 4 years quality guarantee as per tender requirement or customer's requirement .
The porcelain glaze are hard and shinning , it has very good self-cleaning advantage . it is easy for maintenance .
We can design insulators based on customer’s requirement or special technical specifications.
