| Place of Origin: | CHINA |
| Brand Name: | HIVOLT |
| Certification: | CE/SGS |
| Model Number: | HFS-35/70 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | carton |
| Supply Ability: | 20000 pcs per month |
| Sheath Material: | UV Proof Paint | Core Material: | Reinforced Fiber Glass Core |
|---|---|---|---|
| Metal Fitting Material: | Forged Steel | Shaping Method: | High Pressure Mould Injection |
| Application: | Transmission Lines | Connection Way: | Tongue & Clevis |
| High Light: | Polymer Post Insulator,Polymer Suspension Insulators |
||

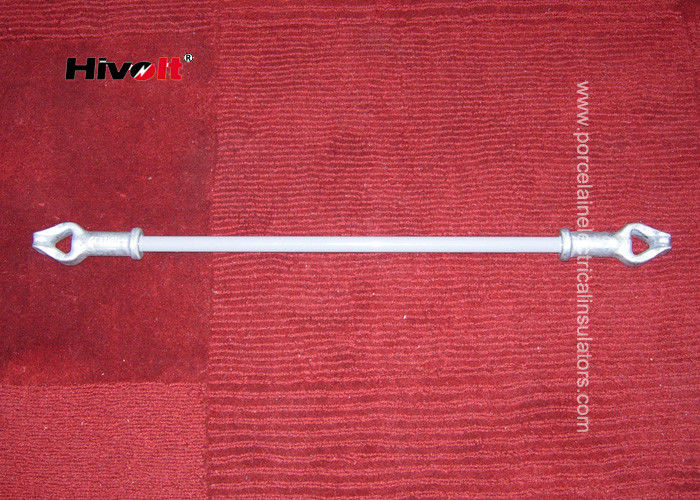

69kV composite long rod stay insulator color grey IEC61109 ,double clevis type
Specifications:
| No. | Type |
Specified mechanical load KN |
Section Length H, mm |
Minimum arcing Distance mm |
Large Shed diameter |
Small Shed diameter | Minimum Nominal Creepage Distance mm | Lightning Impulse Withstand Voltage kV | Wet Power Frequency Voltage kV |
| 1 | FXB-69/70 | 70 | 920±15 | 740 | / | / | 740 | / | 180 |
Description:
The long rod stay insulator have below characters:
1 metal fittings are made of forged steel , without any inner defect . the cost are a little bit higher than cast steel , but it can provide much reliable performance .
the metal fitting zinc coating are Min. 86um , meet related IEC and ASTM standard .
2 the fiber glass core covered a layer of silicone rubber shealth . normally such product will use UV proof painting instead of silicone rubber . of course it can save some cost , but the product electrical performance low down much . and painting is easy removeable .
so our design will provide better service condition.
Applications:
the long rod stay insulator can be used as stay insulators at the distribution line end , and also it can used as spacer for transmission lines.
Competitive Advantage:
Advanced design will offer longer working life , and save the utilities ' cost .
we offer 2 years up to 5 years quality insurance time .
forged steel metal fittings will never lead to failure due to material defect .
the fiber glass core material is ECR FRP rod , it is special used for high voltage product instead of normal type.
Contact Person: canning
Tel: +8613942017540
