| Place of Origin: | CHINA |
| Brand Name: | HIVOLT |
| Certification: | CE/SGS |
| Model Number: | 20NF3150 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton |
| Supply Ability: | 10000 |
| Type: | HV Porcelain Transformer Bushing | Insulation Material: | Porcelain |
|---|---|---|---|
| Color: | Brown | Standard: | DIN 42533 |
| Live Parts Coating: | Tin | Class: | 20kV 3150A |
| High Light: | Porcelain Transformer Bushings,Oil Filled Transformer Bushings |
||

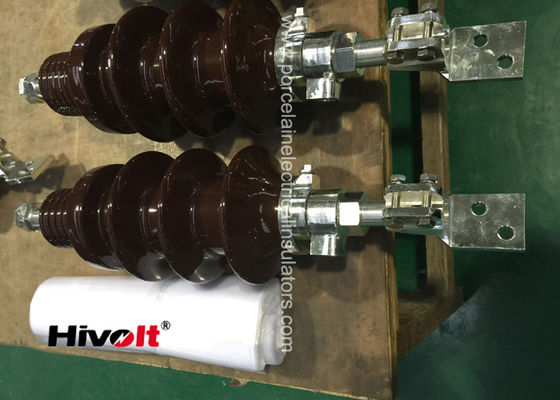

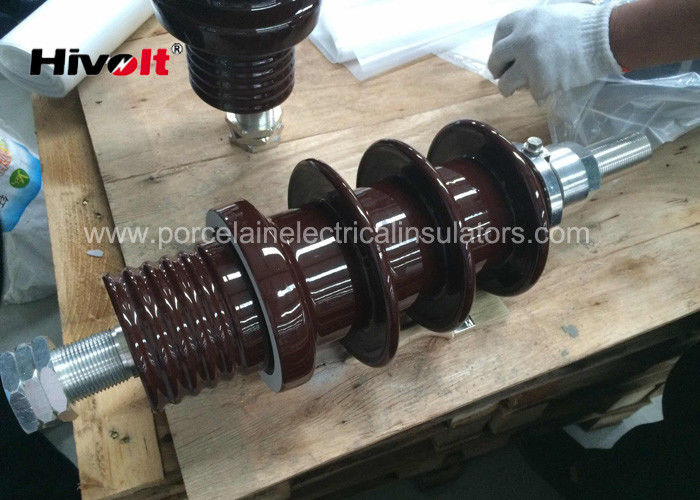

20kV 3150A HV transformer bushing for oil type transformers,color brown ,DIN Standard
Specifications :
1 Voltage class : 24kV
2 Power frequency withstand voltage : 50 kV
3 Lightning impulse withstand voltage : 125 kV
4 Min. Creepage distance : 445mm
5 with arcing horn
it is suitable for oil type power transformers , the conductor rod material is copper ,
other conductive material is brass .
all conductive parts are tin coated .
Advantage : can withstand high current .
