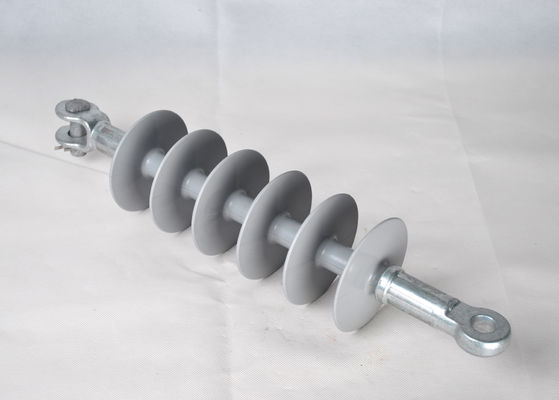

Polymer Dead End Suspension Insulators For Distribution Lines

Easy Maintenance Polymer Dead End Insulators For Tension String

Description:

DS-25 deadend composite insulators , we have advanced design on such products .

1) Fiber glass rod : the rod is produced from highest quality materials . Strands are aligned from Max. tensile strength. the rod is filled 56 % with electrical grade glass fibers.

2) End fittings : End fittings are crimped directly to fiberglass rod , the crimp requires no intermovement of parts to achieve high strength .

3) Insulator sheds : the insulator sheds are made of HTV silicone rubber , this material offers the desirable toughness and resistance , with the hydrophobic characteristics derived from low molecular weight siliocnr oils.

4) Leakage distance : HIVOLT insulators feature high leakage distance for optimum contamination performance.

All the deadend insulator comply with ANSI Standard .

Applications:

Type DS-25 deadend insulators are suitable for tension or suspension type usage for distribution lines 15kV ,25kV. ​ It is wide used in American markets .

Competitive Advantage:

HIVOLT DS-25 deadend insulators are in high quality both mechanical and electrical performance,

​proudct quality guarantee period is 3 years .

​​High quality products deserve your trust !

OEM product are available , or we can change our design based on different customer's requirement.
