| Place of Origin: | CHINA |
| Brand Name: | HIVOLT |
| Certification: | CS/IEC |
| Model Number: | U300B |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden pallets or wooden crates |
| Supply Ability: | 50,000pcs per month |
| Material: | Toughened Glass | Connect Way: | Ball & Socket |
|---|---|---|---|
| Zinc Sleeve: | Available | Standard: | IEC 60383 |
| Package: | Woode Pallet Or Crate | Cotter Key Material: | Stainless Steel |
| High Light: | High Voltage Glass Insulators,Glass Suspension Insulators |
||

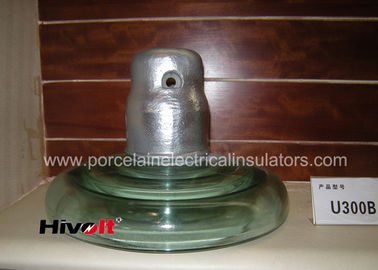

IEC standard 60383 toughened glass insulator U300B with light green color
Description:
Technical Specifications for U300B toughened glass insulator :
| Technical Specification | Unit | Value | |
| 1 | Spacing | mm | 195 |
| 2 | Shed Diameter | mm | 330 |
| 3 | Creepage Distance | mm | 490 |
| 4 | Mechanical Failing load Strength | KN | 300 |
| 5 | Power Frequency Withstand Voltage | ||
| dry | KV | 85 | |
| wet | KV | 50 | |
| 6 | Lightning Impulse Flashover Voltage | KV | 130 |
| 7 | Puncture Voltage | KV | 130 |
| 8 | Coupling Size | mm | 24 |
HIVOLT toughened glass offers below features:
Endurance and no ageing
Toughened glass have the unique ability to resist the effects of time and the
elements with no degradation of mechanical or electrical performance for the following reasons:
• Toughened glass shell is immune to the effects of micro-crack propagation with time and load
temperature cycling.
• The hot cured alumina cement used in toughened glass insulators is very strong, stable,
and immune to any cement growth phenomena.
• A highly automated manufacturing process,
with many years back production experience, we guarantee an extremely homogenous and consistently high level of quality in the materials and the final product assembly.
The stability over time of the quality
of toughened glass is demonstrated not only by in-service experience records
but also by many laboratory test results which confirm that the fluctuation of normal electrical, mechanical
and thermal stresses over many years does not degrade the electrical or mechanical characteristics
of our product.
Live-line maintenance: Toughened Glass insulators U300B are in very high quality level ,
it is very suitable for safe live-line maintenance .
Applications:
Toughened glass insulator U300B can be used as a part of string insulator in transmission lines or substations up to 1000kV , the insulator can assembled as suspension string or tension string with related hardwares .
Competitive Advantage:
The glass insulators are very suitable for mass production in modern production lines , and insulation body of glass component are even and easy for quality control .
All insulator parts are recyclable . Product quality are very reliable .
insulator shell surface are very smooth , and easy for maintance in high pollution areas .
we offer very competitive price . High quality , best competitive is our goal .
