Normal Type Dropout Fuse Cutout Standard Design OEM /ODM Available

Normal Type Dropout Fuse Cutout Standard Design OEM /ODM Available

  • Normal Type Dropout Fuse Cutout Standard Design OEM /ODM Available
Normal Type Dropout Fuse Cutout Standard Design OEM /ODM Available
Product Details:
Place of Origin: CHINA
Brand Name: HIVOLT
Certification: CE/SGS
Model Number: HFC-15
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: carton
Supply Ability: 9000 pcs per month
Contact Now
Detailed Product Description
Insulation Material: High Strength Porcelain Color: Grey
Bracket: NEMA Bracket Type A Or Type B Type: Conventional
Fuse Link: Available Current: 100A , 200A Or 300A
High Light:

Cut Out Fuse Link

,

High Voltage Fuse Cutout

Description:

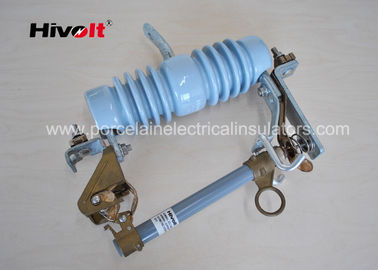

product name :ANSI standard 15KV porcelain dropout fuse cutout grey for American markets normal type

Rated Voltage: 15 kV

Rated Current : 100A,200A

Breaking Capacity : 8kA

(Symmetrical current interruption)

Power Frequency withstand voltage (dry) : 45kV

Impulse Voltage : 110 kV

Leakage distance : 240mm

Connector type : paralell groove connector silver coated


1) the dropout fuse cutout insulator  are made of porcelain C-130 ,

2) insulator color is grey or brown, it depends on user's selection .

3) the ceramice body have excellent mechanical & electrical character.

4) live parts normally use material of copper, bronze or brass .of course the related final product

​   price will have big gap.

4) the cargo normally used for 15KV distribution lines .



Applications:

Used for distribution lines or substations , suitable for wooden or steel cross arm



Competitive Advantage:

2 years of quality guarantee time , the longer guaranted time bring you better service.

offering high quality dropout fuse cutout is our target .

we did routine test and sample test on whole batch product according to IEEE C37.41 , IEEE37.42

in this way , we can sure all product are qualified .

OEM product available .
