Product Details:
Payment & Shipping Terms:
|
| Shed Material: | Silicone Rubber | Core Material: | Reinforced Fibber Glass |
|---|---|---|---|
| Metal Fitting Material: | Forged Steel Or Cast Steel | Standard: | ANSI |
| Color: | Grey | Package: | Carton |
| High Light: | Post Type Insulator,Pin Post Insulator |
||
Description:

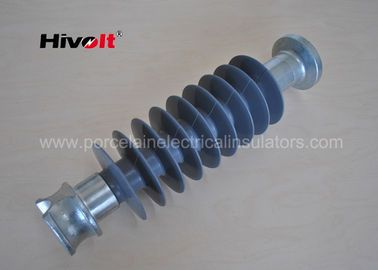

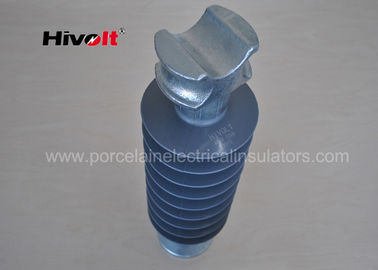

IEC standard 46KV vertical composite line post insulator , grey color for distribution lines.
Product technical performance :
| Technical Specification | Unit | Value | |
| 1 | Total length | mm | 460 |
| 2 | Max. Shed Diameter | mm | 128 |
| 3 | Creepage Distance | mm | 860 |
| 4 | Cantilever Strength | KN | 10 |
| 5 | Low Power frequency Flashover Voltage | ||
| dry | KV | 145 | |
| wet | KV | 115 | |
| 6 | Lightning Impulse flashover Voltage | KV | 240 |
| Lightning Impulse withstand Voltage | KV | 225 |
End fittings are cast steel.the fittings surface are hot dip galvanized .
Weathersheds are high pressure injection molded . Housings manufactured with
silicone rubber , high mechanical strength, high corona resistance and low
permeability to moisture.
Interface between silicone rubber and fiberglass rod are well treated.
This feature prevents intrusion of moisture and contaminating elements.
Applications:
The 46 kV silicone rubber post insulators are used on distrbution lines . These insulators are commonly installed vertically on metal or wooden structures based to support the
conductor .
Competitive Advantage:
. The finish product have excellent mechanical and electrical performance.
• Eliminate or Reduce Maintenance and is compatible with existing plant
• Improves Power Quality (lower RI and TVI)
• Safety (light weight for handling and installation)
• Service Life (consistent performance over its service life)
