46KV Horizontal Composite Line Post Insulator With Clamp Top And Gain Base

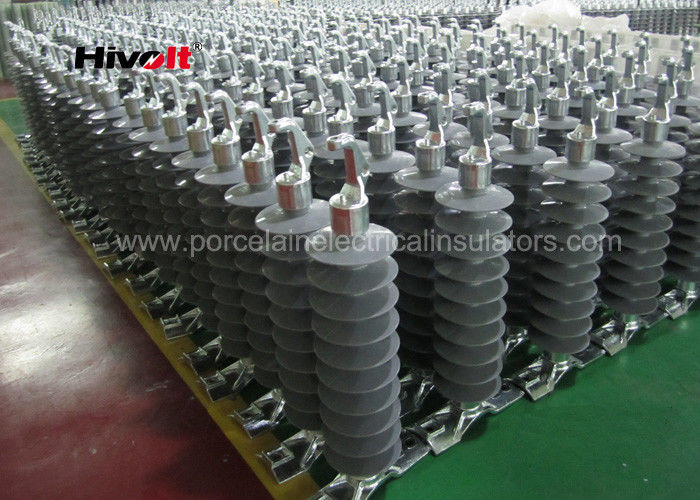

Large Image : 46KV Horizontal Composite Line Post Insulator With Clamp Top And Gain Base

Product Details:

Place of Origin:	CHINA
Brand Name:	HIVOLT
Certification:	CE/SGS
Model Number:	N/A

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	wooden pallet
Supply Ability:	20000 pcs per month

Contact Now

Detailed Product Description

Shed Material:	Silicone Rubber	Core Material:	Reinforced Fiber Glass
Metal Fitting Material:	Forged Steel Or Cast Steel	Standard:	IEC
Color:	Grey	Package:	Wooden Pallet
High Light:	Post Type Insulator , Pin Post Insulator

46KV Horizontal Composite Line Post Insulator With Clamp Top And Gain Base

Description:

IEC standard 46KV horizontal composite line post insulator with clamp top and gain base, grey color

Product technical performance :

	Technical Specification	Unit	Value
1	Total length	mm	560
2	Max. Shed Diameter	mm	160
3	Creepage Distance	mm	1100
4	Cantilever Strength	KN	10
5	Low Power frequency Flashover Voltage
	dry	KV	190
	wet	KV	165
6	Lightning Impulse withstand Voltage +	KV	310
	Lightning Impulse withstand Voltage -	KV	400

HIVOLT silicone rubber line post insulators are manufactured and tested to IEC , ANSI etc. international standards,Quality System is registered to ISO 9001 Quality Systems.

The core rod of the line post insulator is made of a high quality fiberglass that has been specially
formulated for electrical and mechanical applications.

Both insulator base and top fittings material are cast steel , the fittings surface are hot dip galvanized .

zinc thickness comply with IEC and ANSI such international standard requirement.

the insulator clamp made of aluminum alloy , which guarantee powerful hold of conductors.

The housing and sheds of the insulator are one piece, injected molded silicone rubber that is chemically bonded to the core rod. This ensues that the interface between the rubber and rod is impenetrable against moisture ingress.

Applications:

The 46 kV silicone rubber line post insulators are used on overhead distribution lines 46 kV. These insulators are commonly installed horizontally on metal or wooden structures to support the
conductor.

Competitive Advantage:

Improved Reliability (interruptions and outages due to vandalism, pole fires, and flashovers in all types of
environments are a thing of the past)
• Eliminate or Reduce Maintenance and is compatible with existing plant
• Improves Power Quality (lower RI and TVI)
• Energy Efficiency (reduced losses due to lower leakage currents)
• Safety (light weight for handling and installation)
• Service Life (consistent performance over its service life)
