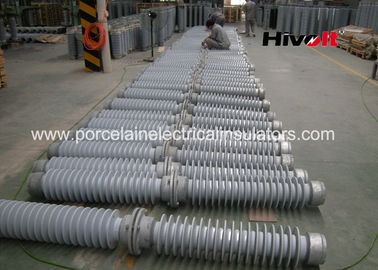

High Aluminum Station Post Insulators 5 Years Quality Guarantee

High Aluminum Station Post Insulators 5 Years Quality Guarantee
High Aluminum Station Post Insulators 5 Years Quality Guarantee

Large Image :  High Aluminum Station Post Insulators 5 Years Quality Guarantee

Product Details:
Place of Origin: CHINA
Brand Name: HIVOLT
Certification: CE/SGS
Model Number: TR304
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: wooden pallet
Supply Ability: 10000 pcs per month
Detailed Product Description
Material: Porcelain C-130 Standard: ANSI C29.9
Color: Grey Type: Station Post Insulator
Pitch: UNC Package: Wooden Pallet
High Light:

Post Type Insulator

,

Solid Core Post Insulators

High Aluminum Station Post Insulators 5 Years Quality Guarantee



Description:

TR304 ANSI standard station post insulator has below characters:

TR304 station post insulator



No. Type

Specified

Cantilever Strength

KN

Tension Strength KN

Compre-ssion Strength

KN

Section Length H, mm

Shed

diameter mm

Minimum Nominal Creepage Distance mm

Lightening Impulse Withstand Voltage kV

Critical Impulse

Flashover Voltage kV

Low  Frequency

withstand Voltage

Wet   kV

1 TR304 4.2 89 267 2032 200 4300 900 1010 385



The HIVOLT station post insulators provide the electric power industry with switch and bus insulators ,

​which having superior operating characteristics plus high strength for substations.

we are doing our best to provide max. economy and trouble-free service in a wide variety of voltage and strength ratings. our products can be used from 15KV up to 1000kV substations.

the TR304 insulator including 2 parts , there are fix bolt connect with those parts.

Those kind of station post stacks for high voltage, EHV and UHV .



Applications:

HIVOLT station post insulators are well-suited to high voltage and EHV switch and bus construction because

of their strength ,rigidity and adaptability to a wide range of stack heights and BIL ratings .

TR304 is suitable for substations and electrical switch up to 245KV . The insulator can be used as vertical .



Competitive Advantage:

HIVOLT station post insulators are low capacitance insulators, this characteristic enables our product to meet the radio influence voltage requirements required by ANSI C29.9

The sturdy sheds on porcelain column of insulator keep power arc away from the body and protet it from damage . even in the improbable instance that all sheds are stripped off , the arcover distance of the insulator will not be decreased materially .
