Conventional Type Dropout Fuse Cutout For Distribution Lines / Substations

Description:

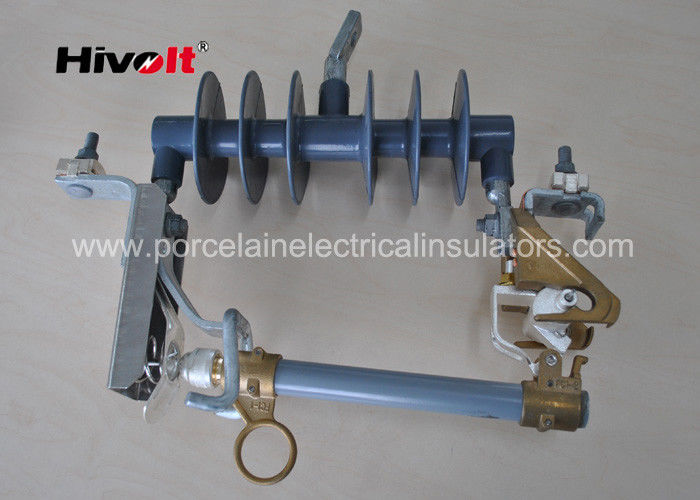

product name :ANSI standard 15KV silicone rubber dropout fuse cutout grey for American markets

Rated Voltage: 15 kV

Rated Current : 100A,200A

Breaking Capacity : 8kA

(Symmetrical current interruption)

Power Frequency withstand voltage (dry) : 45kV

Impulse Voltage : 110 kV

Leakage distance : 240mm

1) the dropout fuse cutout insulator are made of silicone rubber shed and fiber glass core.

2) insulator color is grey or red, it depends on user's selection .

3) the insulaotr body have excellent mechanical & electrical character.

4) live parts normally use material of copper, bronze or brass .of course the related final product

​ price will have big gap.

4) the cargo normally used for 15KV distribution lines .

Applications:

Used for distribution lines or substations , suitable for wooden or steel cross arm

Competitive Advantage:

2 years of quality guarantee time , the longer guaranted time bring you better service.

offering high quality dropout fuse cutout is our target .

we did routine test and sample test on whole batch product according to IEEE C37.41 , IEEE37.42

in this way , we can sure all product are qualified .

OEM product available .
