High Voltage Glass Insulators , Cap And Pin Power Line Glass Insulators U300BP

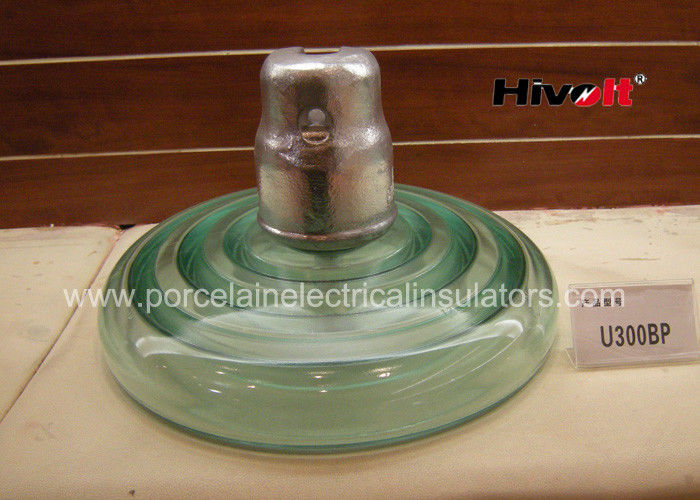

Large Image :  High Voltage Glass Insulators , Cap And Pin Power Line Glass Insulators U300BP

Product Details:
Place of Origin: CHINA
Brand Name: HIVOLT
Certification: CS/IEC
Model Number: U300BP
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden pallets or wooden crates
Supply Ability: 50,000pcs per month
Detailed Product Description
Material: Toughened Glass Connect Way: Ball & Socket
Zinc Sleeve: Available Standard: IEC 60383
Package: Woode Pallet Or Crate Cotter Key Material: Stainless Steel
High Light:

High Voltage Glass Insulators


Glass Disc Insulator

IEC standard 60383 toughened glass insulator U300BP with light green color




Technical Specifications for U300BP toughened glass insulator :


  Technical Specification Unit Value
1 Spacing mm 195
2 Shed Diameter mm 380
3 Creepage Distance mm 690
4 Mechanical Failing load Strength KN 300
5 Power Frequency Withstand Voltage
  dry KV 100
  wet KV 60
6 Lightning Impulse Flashover Voltage KV  155
7 Puncture Voltage KV 130
8 Coupling Size mm 24


HIVOLT toughened glass offers below features:

Endurance and no ageing
the insulator has the unique ability to resist the effects of time and the
elements with no degradation of mechanical or electrical performance for the following reasons:

•  Glass insulator shell is immune to the effects of micro-crack propagation with time and load
temperature cycling.
• The hot cured alumina cement used in toughened glass insulators is very strong, stable,
and immune to any cement growth phenomena.

• A highly automated manufacturing process,
with many years back production experience, we guarantee an extremely homogenous and consistently high level of quality in the materials and the final product assembly.

The stability over time of the quality
of toughened glass is demonstrated not only by in-service experience records

but also by many laboratory test results which confirm that the fluctuation of normal electrical, mechanical
and thermal stresses over many years does not degrade the electrical or mechanical characteristics
of our product.
Live-line maintenance: Toughened Glass insulators U300BP are in very high quality level ,

it is very suitable for safe live-line maintenance .



Glass insulator U300BP works as a part of string insulator in transmission lines or substations up to 1000kV , the insulator can assembled as suspension string or tension string with related hardwares .

​the insulator string can be single V string , double V string etc.


Competitive Advantage:

The glass insulators has good advantage for example :mass production in auto- production lines , and insulation body of glass component are even and easy for quality control .the unqaulifed parts are recyclable, so it will save cost to provie more reasonable price for end users.

Product quality are very reliable .

insulator shell surface are very smooth and free of visual defect , and easy for maintance in high pollution areas . we offer very competitive price . High quality , best competitive is our goal .
