Glass Suspension Insulators / Clear Glass Insulators With CS IEC Certificate

Glass Suspension Insulators / Clear Glass Insulators With CS IEC Certificate
Glass Suspension Insulators / Clear Glass Insulators With CS IEC Certificate

Large Image :  Glass Suspension Insulators / Clear Glass Insulators With CS IEC Certificate

Product Details:
Place of Origin: CHINA
Brand Name: HIVOLT
Certification: CS/IEC
Model Number: U420B
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden pallets or wooden crates
Supply Ability: 50,000pcs per month
Detailed Product Description
Material: Toughened Glass Connect Way: Ball & Socket
Zinc Sleeve: Available Standard: IEC 60383
Package: Woode Pallet Or Crate Cotter Key Material: Stainless Steel
High Light:

High Voltage Glass Insulators

,

Glass Disc Insulator

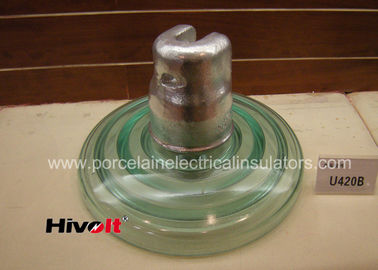

IEC standard toughened glass insulator U420B with light green color



Description:



Technical Specifications for U420B toughened glass insulator :



  Technical Specification Unit Value
1 Spacing mm 205
2 Shed Diameter mm 380
3 Creepage Distance mm 550
4 Mechanical Failing load Strength KN 420
5 Power Frequency Withstand Voltage
  dry KV 90
  wet KV 55
6 Lightning Impulse Flashover Voltage KV  140
7 Puncture Voltage KV 140
8 Coupling Size mm 28



Some back ground knowledge about toughened glass shell :

The toughening process consists in inducing prestresses to the glass shell by a rapid
controlled cooling of the still hot molded glass. The pre-stresses result in compressive forces on the outer
surface layer balanced by tensile forces inside the body of the glass shell.
The presence of permanent outer surface compressive stresses prevents crack formation or propagation in
the glass shell for an unlimited period of time .
The combination of compressive and tensile stresses inside the glass body gives toughened glass
insulators the unique property of always breaking  when overstressed mechanically or electrically. Crumbling of the glass shell always results in small corn-size chunks . the glass shell color are transparent or little green.  and the bid advantage of glass insulator shell is all parts are recyclable . it will hurt the environment .



Applications:

Toughened glass insulator U420B can be used as a part of string insulator in transmission lines or substations up to 1000kV ,  the insulator can assembled as suspension string or tension string with related hardwares .



Competitive Advantage:

The glass insulators are easy for mass production in modern production lines , and insulation body of glass component are even and easy for quality control .

All insulator parts are recyclable .  Product quality are very reliable .

insulator shell surface are very smooth , and easy for maintance .

very competitive price will make you satisifie with the budget !
