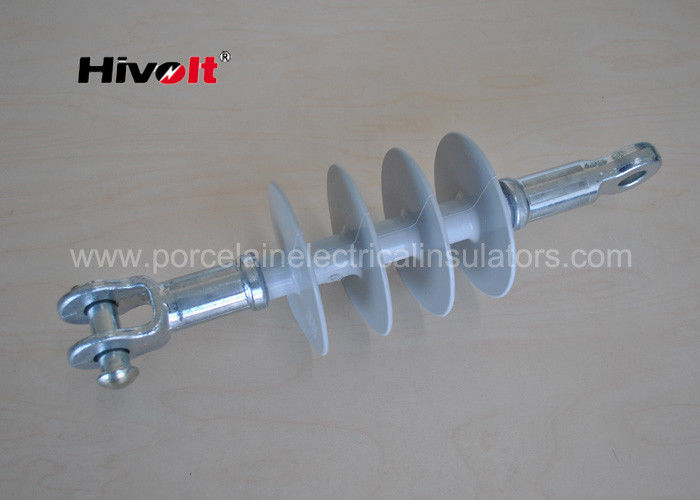

Grey Color Silicone Rubber Dead End Insulator Fiber Glass Core Material 15kV

Grey Color Silicone Rubber Dead End Insulator Fiber Glass Core Material 15kV

Description:

DS-15 deadend composite insulators , the  housing and sheds material are silicone rubber , this polymer has inherent resistance to UV and corona . it also provides a water repellent surface  to decrease flashover.

The insulator production procedure is moulded silicone on fiber glass core, this allows variable leakage distances for a fixed insulator length, an the eliminates moldines that can ecourage leakage currents.

The metal fittings must be cramped to the fiberglass core .

the insulator rubber material is HTV type .

When we make design on deadend insulators , the insulator sheath thcikness is Min. 3mm ,which can reduce the electric field strength within the FRP rod .

All the deadend insulator comply with ANSI Standard . that means those insulators are commonly used in American Markets , USA, South American countries etc.

Applications:

Suitable for tension or suspension type usage for distribution lines 15kV.

It is wide used in American markets .

Competitive Advantage:

HIVOLT  DS-15 deadend insulators are in high quality both mechanical and electrical performance, we guarantee you every pieces of insulator are well tested before transported out of factory .

​The insulator can only be sent out after passing related test items.

the 15KV dead end insulator has good experience to work more than 20 years.

OEM product are available , or we can change our design based on different customer's requirement.
