Product Details:
Place of Origin: CHINA
Brand Name: HIVOLT
Certification: CE/SGS
Model Number: SDI30 (ШФ20Г)
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: wooden pallet
Supply Ability: 20000 pcs per month
Detailed Product Description
Material: Porcelain C-120 Color: Brown Or Grey
Porcelain Thread: Yes Standard: IEC
Spindle: Available Package: Wooden Pallet
High Light:

High Voltage Porcelain Insulators

,

High Tension Insulators

24kV porcelain pin insulator for distrubtion lines for Russian market SDI30 (ШФ20Г)



Description:

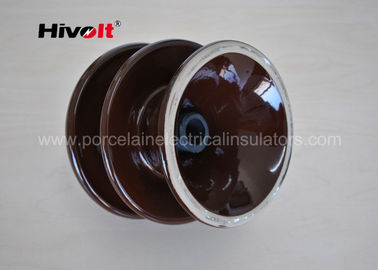

SDI30  (ШФ20Г) pin type insulator

Russian standard porcelain pin type insulator technical character shown below :

  Technical Specification Unit Value
1 Total length mm 185
2 Max. Shed Diameter mm 172
3 Creepage Distance mm 400
4 Cantilever Strength KN 13
5 Power frequency Withstand Voltage
  dry KV 85
  wet KV 65
6 Lightening Impulse Withstand Voltage KV  125
7 Puncture Voltage KV 130



HIVOLT 24kV pin type porcelain insulators are specially designed for Russian market .

insulator inner thread can be porcelain thread, zinc thimble or resin thread . which depends on different

​cutomer's requirements .

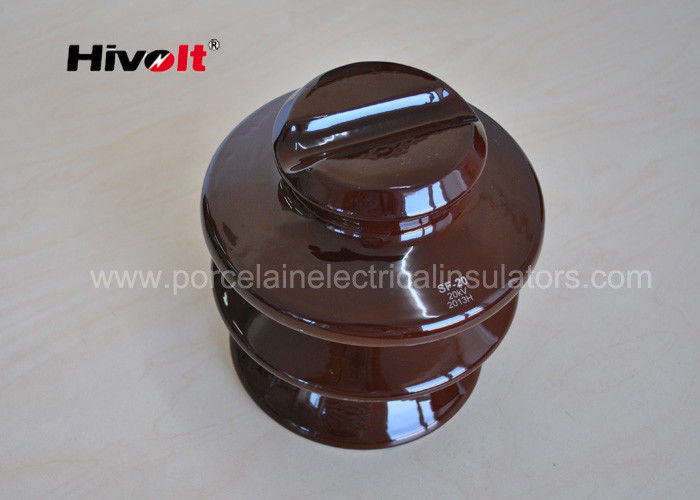

​the insulator is with groove top , which can hold conductors through binding wire .

the pin insulator top can be normal type (with normal porcelain glaze ) or radio free type (with semi-conductive glaze) .

the 24kV pin type porcelain insulator are one solid piece porcelain .

​we can provide short stud or long bolt for insulator assembly , which can be suitable for wooden crossarm or steel cross arm .





Applications:

The 24kV pin type porcelain insulator is used for distrbution lines of 15kV , up to 24kV. These insulators are commonly installed vertically on metal or wooden structures based to support the
conductor .



Competitive Advantage:

The HIVOLT pin type insulator are made of high strength aluminum porcelain C-130 .

All units product are routine tested one by one , and sample tested by batches ,

​so we guarantee all products are in high quality level .

we offer 3 years quality guarantee .

the product price are very competitive . if you have interests , please feel free contacting with us !
