Product Details:
Payment & Shipping Terms:
|
| Material: | Porcelain C120 | Color: | Grey , Brown Or White |
|---|---|---|---|
| Connection Way: | Ball & Socket | Standard: | ANSI C29.2 |
| Package: | Wooden Pallet | Zinc Sleeve: | Available |
| High Light: | Disc Type Insulator,Suspension Type Insulator |
||

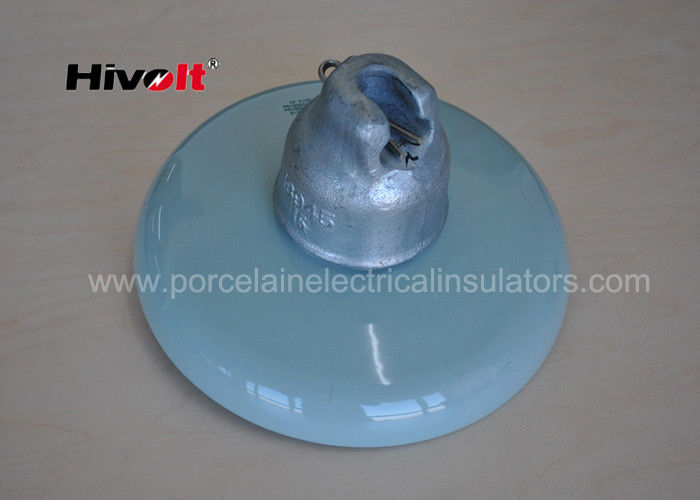

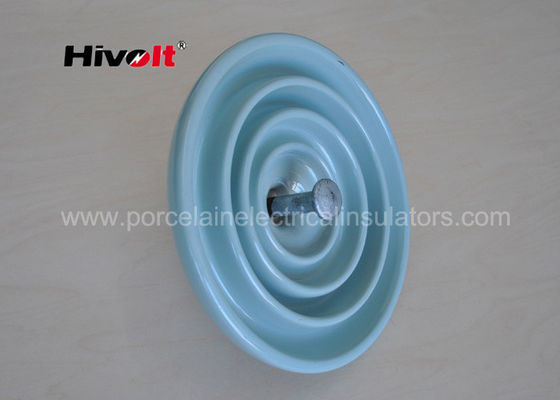

Grey / Brown / White Suspension Type Insulators , Porcelain Disc Insulator With CE / SGS
Technical Specifications for ANSI 52-3 disc insulator porcelain grey specially for US market
| Technical Specification | Unit | Value | |
| 1 | Spacing | mm | 146 |
| 2 | Shed Diameter | mm | 255 |
| 3 | Creepage Distance | mm | 320 |
| 4 | Combined M&E Strength | KN | 70 |
| 5 | Impact Strength | N.m | 6 |
| 6 | Low Power Frequency Flashover Voltage | ||
| dry | KV | 80 | |
| wet | KV | 50 | |
| 7 | Critical Impulse Flashover Voltage | ||
| Positive | KV | 125 | |
| Negative | KV | 130 | |
| 8 | Puncture Voltage | KV | 110 |
| 9 | RIV test Voltage to the Ground | KV | 10 |
| Max RIV at 1 MHz | μV | 50 |
we sell big quantity of ANSI 52-3 disc insulators to USA , and many South American countries and Caribbeans .because our product have very good performances .
For example :
1 the insulator mechanical strength are more than 30% higher than rated value .
2 the insulator surface covered a layer of hard shinning glaze . it will lead to good self-cleaning performance , it is also very easy for cleaning by line man .
Applications:
insulator 52-3 are very suitable for tension string or suspension string in electrical lines from 11kV up to 132kV. in some substations , you can also find it .
Competitive Advantage:
HIVOLT 52-3 insulators have a very reliable electrical & machincal character .
the failure rate is lower than 1 per 100000 .
We can design insulators based on customer’s requirement or special technical specifications.
