Product Details:
Payment & Shipping Terms:
|
| Shed Material: | Silicone Rubber D Class | Core Material: | Reinforced Fiber Glass Core ,ECR |
|---|---|---|---|
| Metal Fitting Material: | Forged Steel Hardware | Shaping Method: | High Pressure Mould Injection Or Moulded |
| Application: | Transmission Lines And Substations | Color: | Light Grey |
| Connection Way: | Eye & Eye | Arcing Horn: | Can Supply Upon Request |
| High Light: | 70kn composite long rod insulator,24kv composite long rod insulator,eye to eye composite suspension insulator |
||

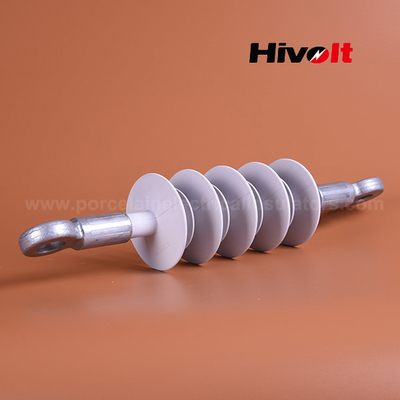

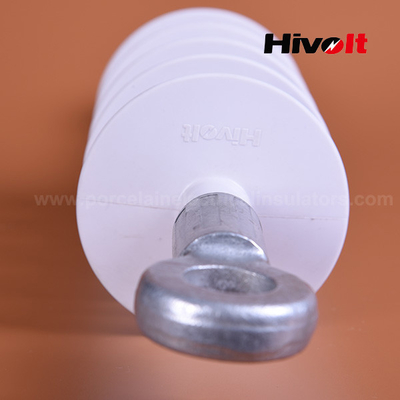

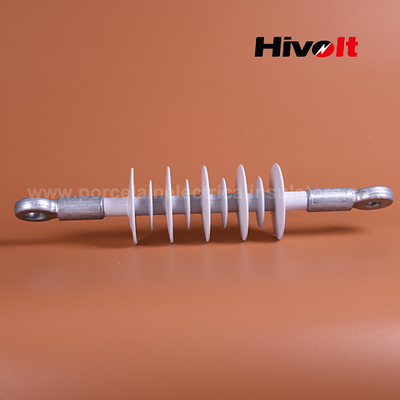

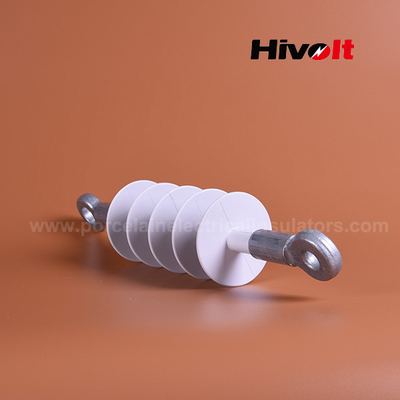

24kV Light grey color 70KN Composite Long Rod Insulator with eye to eye connection hardware
Specifications:
| No. | Type |
Specified mechanical load KN |
Section Length H, mm |
Minimum arcing Distance mm |
Large Shed diameter |
Small Shed diameter | Minimum Nominal Creepage Distance mm | Lightning Impulse Withstand Voltage kV | Wet Power Frequency Voltage kV |
| 1 | HFXBW4-24/70 | 70 | 450 | 500 | 112 | 76 | 890 | 120 | 55 |
Description:
HIVOLT silicone rubber long rod insulators choose high quality materials for parts :

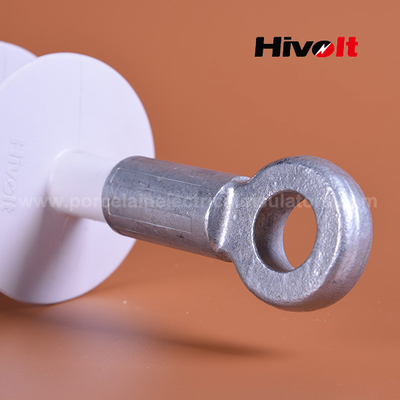

1 the metal fittings use high density forged steel , the material have no defect inside, will provide high reliable mechanical performance.
The fittings are hot galvanized , zinc thickness meet related IEC and ASTM standard requirement
2 insulator sheath & shed are made of silicone rubber with excellent electrical performance .
3 insulator core are made of reinforced high density fiber glass .
4 the 24kV silicone rubber lond rod insulator are ball & socket connection according to IEC standard.
Applications:
Suitable for tension string or suspension string in transmission lines 69KV .
Competitive Advantage:
High reliable mechanical & electrical performance , we offer 2 years up to 5 years quality guarantee .
The insulator have a very good self-cleaning performance . it is easy for maintenance .
the big / small sheds profile design can improve insulators' electrical performance , make insulator
more suitable for heavy pollution area.
We can design insulators based on customer’s requirement or special technical specifications.
