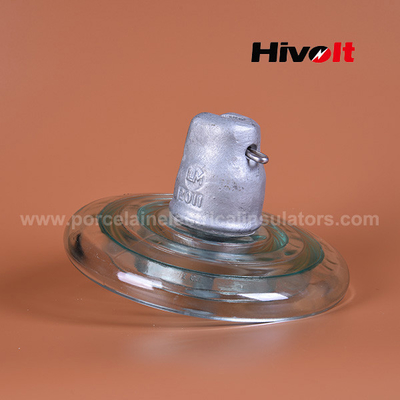

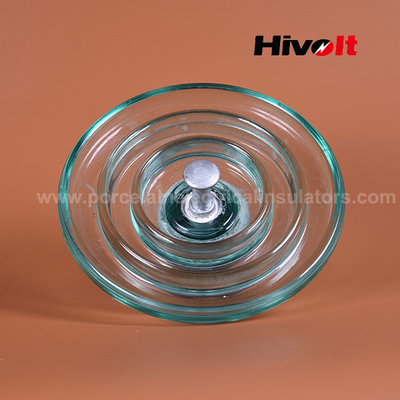

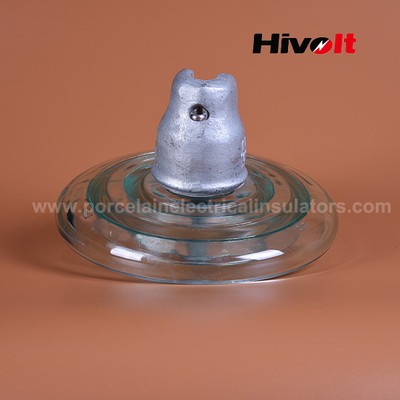

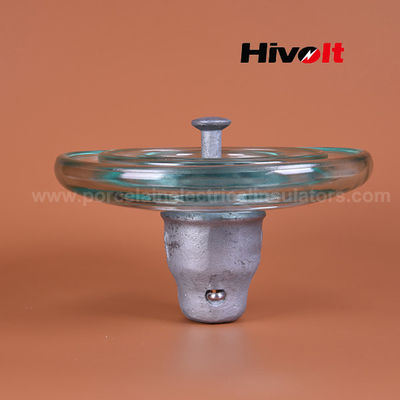

100kn Toughened Glass Insulator For 110kv Transmission Lines

100kn Toughened Glass Insulator For 110kv Transmission Lines
100kn Toughened Glass Insulator For 110kv Transmission Lines 100kn Toughened Glass Insulator For 110kv Transmission Lines 100kn Toughened Glass Insulator For 110kv Transmission Lines 100kn Toughened Glass Insulator For 110kv Transmission Lines 100kn Toughened Glass Insulator For 110kv Transmission Lines 100kn Toughened Glass Insulator For 110kv Transmission Lines

Large Image :  100kn Toughened Glass Insulator For 110kv Transmission Lines

Product Details:
Place of Origin: CHINA
Brand Name: HIVOLT
Certification: CS/IEC
Model Number: U100BL
Payment & Shipping Terms:
Minimum Order Quantity: 300
Price: Negotiable
Packaging Details: Wooden pallets or wooden crates
Delivery Time: 10 days after PO
Supply Ability: 50,000pcs per month
Detailed Product Description
Material: Toughened Glass Bell Connect Way: Ball & Socket Coupling
Zinc Sleeve: Yes Standard: IEC 60383-1993
Package: Woode Pallet Or Crate Cotter Key Material: Stainless Steel Or Bronze
High Light:

100kn toughened glass insulator

,

110kv toughened glass insulator

,

transmission lines toughened glass insulator

100kN Toughened Glass Insulator U100BL with zinc sleeve normal type for 110kV transmission lines



Description:



Technical Specifications for U100BL toughened glass insulator :



  Technical Specification Unit Value
1 Spacing mm 146
2 Shed Diameter mm 255
3 Creepage Distance mm 320
4 Mechanical Failing load Strength KN 100
5 Power Frequency Withstand Voltage
  dry KV 70
  wet KV 45
6 Lightning Impulse Flashover Voltage KV  110
7 Puncture Voltage KV 110
8 Coupling Size mm 16



HIVOLT toughened glass offers below features:

Endurance and no ageing
Toughened glass have the unique ability to resist the effects of time and the
elements with no degradation of mechanical or electrical performance for the following reasons:

100kn Toughened Glass Insulator For 110kv Transmission Lines 0
• Toughened glass shell is immune to the effects of micro-crack propagation with time and load
temperature cycling.
• The hot cured alumina cement used in  toughened glass insulators is very strong, stable,
and immune to any cement growth phenomena.

• A highly automated manufacturing process,
with many years back production experience,  we guarantee an extremely homogenous and consistently high level of quality in the materials and the final product assembly.

The stability over time of the quality
of toughened glass is demonstrated not only by in-service experience records

but also by many laboratory test results which confirm that the fluctuation of normal electrical, mechanical
and thermal stresses over many years does not degrade the electrical or mechanical characteristics
of  our product.
Live-line maintenance: Toughened Glass insulators U300B are in very high quality level ,

it is very suitable for safe live-line maintenance .



Applications:

Toughened glass insulator U100BL can be used as a part of string insulator in transmission lines or substations up to 1000kV , the insulator can assembled as suspension string or tension string with related hardwares .



Competitive Advantage:

The glass insulators are very suitable for mass production in modern production lines , and insulation body of glass component are even and easy for quality control .

All insulator parts are recyclable . Product quality are very reliable .

insulator shell surface are very smooth , and easy for maintance in high pollution areas .

we offer very competitive price .    High quality , best competitive is our goal .
