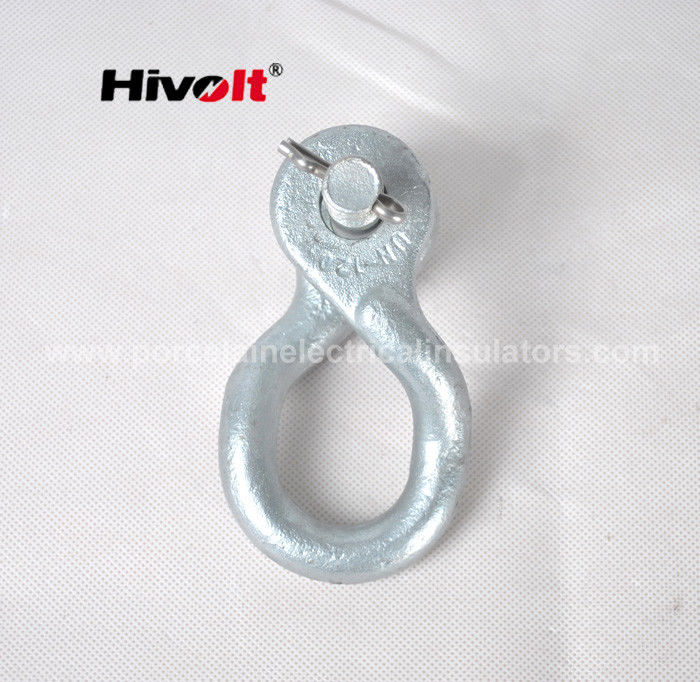

Forged Steel Twisted Shackle Transmission Line Hardware UN-120 With Mechanical Failing Load 120kN

Twisted shackle UN-120 made of forged steel with mechanical failing load 120kN

Description:

The Twist Shackle features a screw pin and is offered in sizes ranging from 5/32" to 1/2". This twisted shackle is made from forged steel for maximum corrosion resistance and durability, making it ideal for marine and industrial applications.

,are made of forged steel , the product surface are hot dip galvanized . the zinc thickness are more than 86μm​. we supplied huge quantity to USA market .

​

Applications:

The twisted shackle mainly used for transmission line as a connection hardware .

the shackle have excellent mechanical tension strength , normally 70kN ,80KN,100KN,120KN,160KN etc.

​it depends on usage way whether connection with steel tower or insulators .

competitive Advantage:

• Forged 45# steel with galvanized coating which meet ASTM 153 standard .
•  construction combines strength and corrosion resistance
• Twisted design sets pin perpendicular to top of the loop
• Self-locking pin resists loosening caused by vibration
• Pin is captive to prevent accidental loss
• Available in a wide range of sizes to accommodate different applications and loads
