55-5 Grey Color High Voltage Ceramic Insulators With Porcelain Thread

55-5 Grey Color High Voltage Ceramic Insulators With Porcelain Thread
55-5 Grey Color High Voltage Ceramic Insulators With Porcelain Thread 55-5 Grey Color High Voltage Ceramic Insulators With Porcelain Thread

Large Image :  55-5 Grey Color High Voltage Ceramic Insulators With Porcelain Thread

Product Details:
Place of Origin: CHINA
Brand Name: HIVOLT
Certification: CE/SGS
Model Number: ANSI C 55-5
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: wooden pallet
Supply Ability: 20000 pcs per month
Detailed Product Description
High Light:

Shackle Type Insulator

,

High Voltage Porcelain Insulators

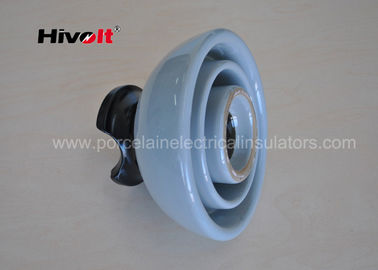

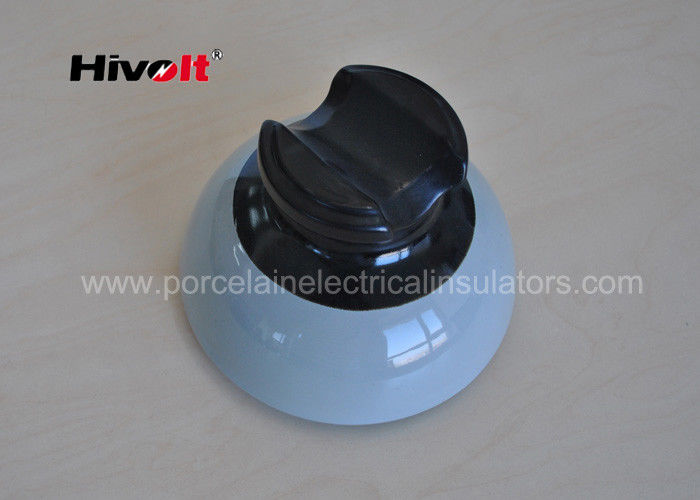

ANSI pin type insulator 55-5 grey color with porcelain thread​



Description:

ANSI 55-5 pin type insulator

ANSI standard porcelain pin type insulator technical character shown below :

  Technical Specification Unit Value
1 Total Height mm 124
2 Max. Shed Diameter mm 178
3 Creepage Distance mm 305
4 Cantilever Strength KN 13
5 Low frequency Flashover Voltage
  dry KV 80
  wet KV 45
6 Critical Impulse Flashover Voltage + KV  130
7 Low Frequency Puncture Voltage KV 115
8 RIV Data
  Low Frequency Test Voltage to Ground KV 15
  Max. RIV at 1MHz μV 100



ANSI 55-5 pin type porcelain insulators are designed according to ANSI C29.5.

​the product used for low voltage or medium voltage distributions lines.

​normally those products will be with porcelain thread , lead head pins are recommended for use with those insulators . the cantilever strength test shall also be conducted with lead head pins .

because lead is soft , it will not hurt the porcelain thread .

the pin type insulator top are with semi-conductive glaze.

the insulator thread hole also covered with semi-conductive glaze .

​we can provide lead head pins for insulator assembly , which can be suitable for wooden crossarm or steel cross arm .



Applications:

The 55-5 pin type porcelain insulator is used for low voltage or medium voltage distributions lines. These insulators are commonly installed vertically on metal or wooden structures based to support the
conductor .



Competitive Advantage:

The HIVOLT pin type insulator are made of high strength aluminum porcelain C-130 .

All units product are routine tested one by one , and sample tested by batches ,

​so we guarantee all products are in high quality level .

we offer 3 years quality guarantee .

the product price are very competitive . if you have interests , please feel free contacting with us !
