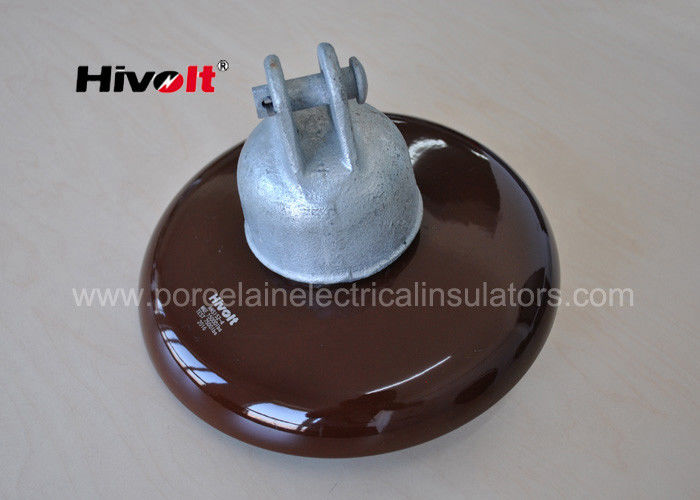

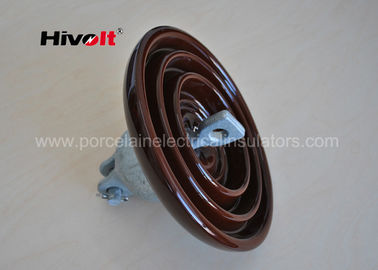

11 Kv 33 Kv Brown Porcelain Suspension Insulator For Distribution Lines

11 Kv 33 Kv Brown Porcelain Suspension Insulator For Distribution Lines

    • 11 Kv 33 Kv Brown Porcelain Suspension Insulator For Distribution Lines
    • 11 Kv 33 Kv Brown Porcelain Suspension Insulator For Distribution Lines
  • 11 Kv 33 Kv Brown Porcelain Suspension Insulator For Distribution Lines

    Product Details:

    Place of Origin: CHINA
    Brand Name: HIVOLT
    Certification: CE/SGS
    Model Number: ANSI 52-4

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: wooden pallet
    Supply Ability: 50000 pcs per month
    Contact Now
    Detailed Product Description
    Material: Porcelain C120 , Porcelain C130 Connection Way: Tongue & Clevis
    Color: Grey Or Brown Zince Sleeve: Available
    Standard: ANSI C29.2 Application: Transmission Line Or Distribution Lines

    Description:



    11 Kv 33 Kv Porcelain Suspension Insulator For Distribution Lines ANSI standard 52-4 brown



    11 Kv 33 Kv Brown Porcelain Suspension Insulator For Distribution Lines


    Technical Data Sheet:



      Technical Specification Unit Value
    1 Spacing mm 146
    2 Shed Diameter mm 254
    3 Creepage Distance mm 292
    4 Combined M&E Strength KN 70
    5 Impact Strength N.m 6
    6 Low Power Frequency Flashover Voltage
      dry KV 80
      wet KV 50
    7 Critical Impulse Flashover Voltage
      Positive KV 125
      Negative KV 130
    8 Puncture Voltage KV 110
    9 RIV test Voltage to the Ground KV 10
      Max RIV at 1 MHz μV 50



    because high quality raw materil is the firm base of high level products , so we choose high quality materials for parts of HIVOLT product :

    1 Cap and Pins

    insulator cap use high density ductile iron or meallable iron  ,each pieces  are tested qualified after magnetic powder inspection .

    Both cap and pin are hot galvanized , zinc thickness meet related ASTM A 153 standard requirements.



    the pins are made of forged steel .



    2 Porcelain

    the porcelain body use material high aluminum porcelain C120  to meet insulator E&M requirement . the porcelain surface covered a layer of shinning glaze , color can be grey , brown or white .



    3 Cotter key

    tthe key material is stainless steel which guarantee insulator string connection in a safe way .



    4 Cement

    the high performance portland cement make the  insulator assembled with very good mechanical performance .





    Applications:

    Suitable for tension string or suspension string in transmission lines 11kV ,33 kV,66Kv,132kV etc. some customers also use the insulators for distribution lines.







    Competitive Advantage:

    we export huge quantity of such product due to high reliable mechanical & electrical performance , we offer 1 years quality guarantee period after shipment . high quality deserve your trust !

    The porcelain surface covered a layer of smooth and shinning glaze, which have a very good self-cleaning performance . it is easy for maintenance .



    if some customer need special design of insulators , we can do that . OEM product are also available .
