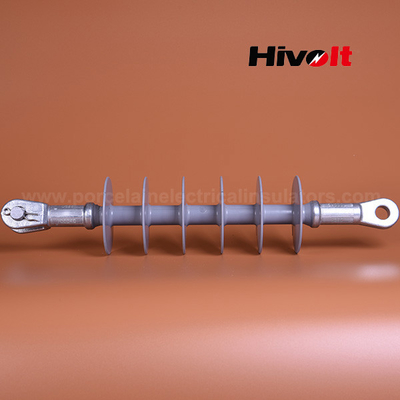

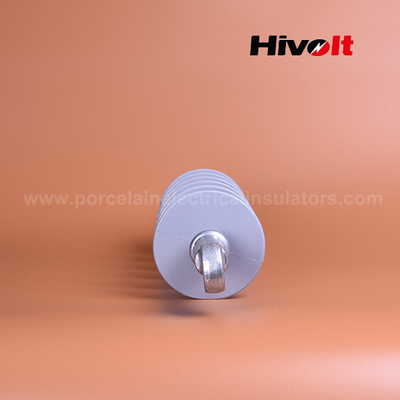

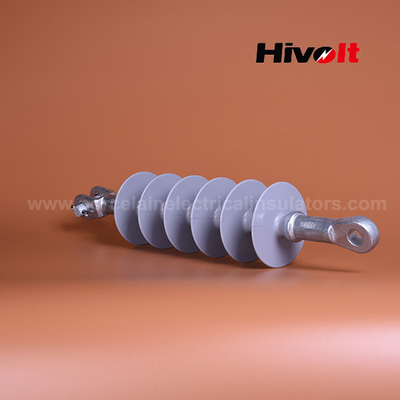

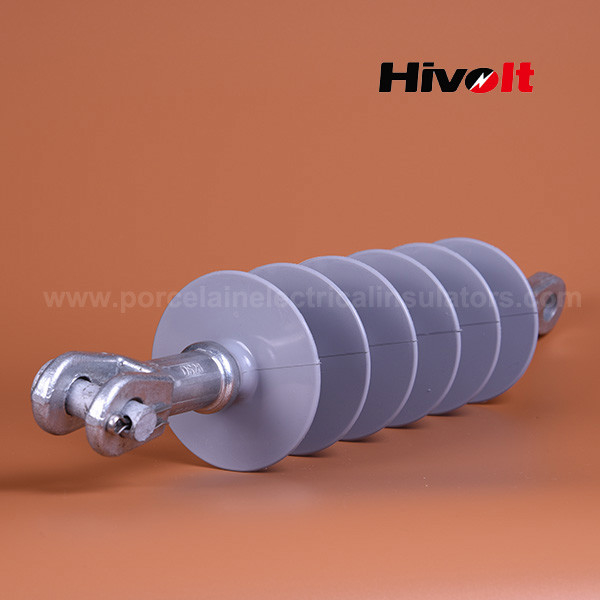

Dead End 25kv Silicone Rubber Composite Insulator With Tongue And Clevis Connection Hardware

Dead End 25kv Silicone Rubber Composite Insulator With Tongue And Clevis Connection Hardware
Dead End 25kv Silicone Rubber Composite Insulator With Tongue And Clevis Connection Hardware Dead End 25kv Silicone Rubber Composite Insulator With Tongue And Clevis Connection Hardware Dead End 25kv Silicone Rubber Composite Insulator With Tongue And Clevis Connection Hardware Dead End 25kv Silicone Rubber Composite Insulator With Tongue And Clevis Connection Hardware Dead End 25kv Silicone Rubber Composite Insulator With Tongue And Clevis Connection Hardware Dead End 25kv Silicone Rubber Composite Insulator With Tongue And Clevis Connection Hardware

Large Image :  Dead End 25kv Silicone Rubber Composite Insulator With Tongue And Clevis Connection Hardware

Product Details:
Place of Origin: CHINA
Brand Name: HIVOLT
Certification: CE/SGS
Model Number: DS-25
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: USD3
Packaging Details: Wooden drum
Supply Ability: 20000 pcs per month
Detailed Product Description
Shed Material: Silicone Rubber E Class Core Material: Reinforced Fiber Glass Core ,ECR
Metal Fitting Material: Forged Steel Hardware Shaping Method: High Pressure Mould Injection Or Moulded
Application: Distribution Lines Color: Light Grey
Connection Way: Tongue & Clevis Arcing Horn: Can Supply Upon Request
High Light:

dead end silicone rubber composite insulator

,

25kv silicone rubber composite insulator

,

silicone rubber polymer composite insulators

Dead end silicone rubber Insulator with tongue and clevis connection hardware 25kV



Specifications:



No. Type

Specified

mechanical

load

KN

Section Length H, mm

Minimum

arcing

Distance

mm

Large

Shed

diameter

Small Shed diameter Minimum Nominal Creepage Distance mm Lightning Impulse Withstand Voltage kV Wet Power Frequency Voltage kV
1 DS-25 70 445 260 100 100 670 225 100




Description:



HIVOLT polymer deadend  insulators use high quality materials for all parts :

1  the metal fittings which manufactured with high density forged steel , we can guarantee the parts without defect inside, will provide high reliable mechanical performance.

The fittings are hot galvanized , zinc thickness meet related IEC and ASTM standard requirement

2 insulator sheath & shed  are made of silicone rubber with excellent electrical performance .

3 insulator core are made of reinforced high density fiber glass .

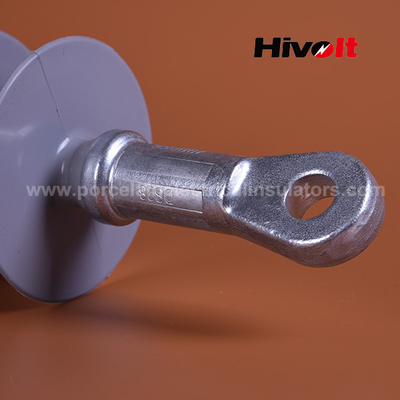

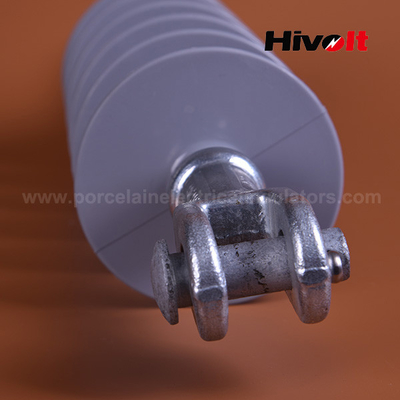

4  the 24kV silicone rubber lond rod insulator are tongue & clevis connection according to ANSI standard.



Applications:

Suitable for tension string or suspension string in transmission lines 25KV .



Competitive Advantage:

The insulator have a very good self-cleaning performance . it is easy for maintenance . High reliable mechanical & electrical performance , we offer 2 years up to 5 years quality guarantee .

the big  /  small sheds profile design can improve insulators' electrical performance , make insulator

more suitable for heavy pollution area.

We can design insulators based on customer’s requirement or special technical specifications.

the package are designed as wooden drump . which can save much space to save freight cost .

and it can perfectly protect the insulators inside .
